Wehrli 07.5-10 GM Duramax LMM 3in Y-Bridge Kit - Bengal Silver

This LMM 3" Y-Bridge Kit is an upgraded high flow intake kit for the 2007.5-2010 LMM Duramax which replaces the OEM upper intake manifold supplying air to the engine intake runners. The OEM Y-bridge for these trucks is a poorly designed, slip-fit style two piece bridge with very little support and is prone to blowing apart under boost on hard working and high performance trucks creating poor drivability and decreased power. This kit is a much improved, high flow, bolt together style two piece 3" bridge which provides a secure sealing surface where the air inlet horn connects to the bridge. 3" high flow upper and lower intercooler pipes feature smooth flowing mandrel bends, CNC machined billet flanges and perfectly compliment the y-bridge to offer a full 3" tract from intercooler pipe slip connection to the engine incorporating the factory grid heater, throttle valve, and EGR connection controls. Compatible with OEM lower passenger side intercooler pipe as well as our upgraded 3.5" High Flow Passenger Side Intercooler Pipe Kit WCF100367. Finished in your choice of custom powder colors. This product is compatible with stock trucks requiring no additional modifications, upgrades, or tuning for installation. Pairs best with emissions compliant tuning and drop in turbochargers for optimum performance gains. Wehrli Custom Fab Y-Bridge Kit, 3in., 2007.5-2010 Duramax LMM, Bengal Silver

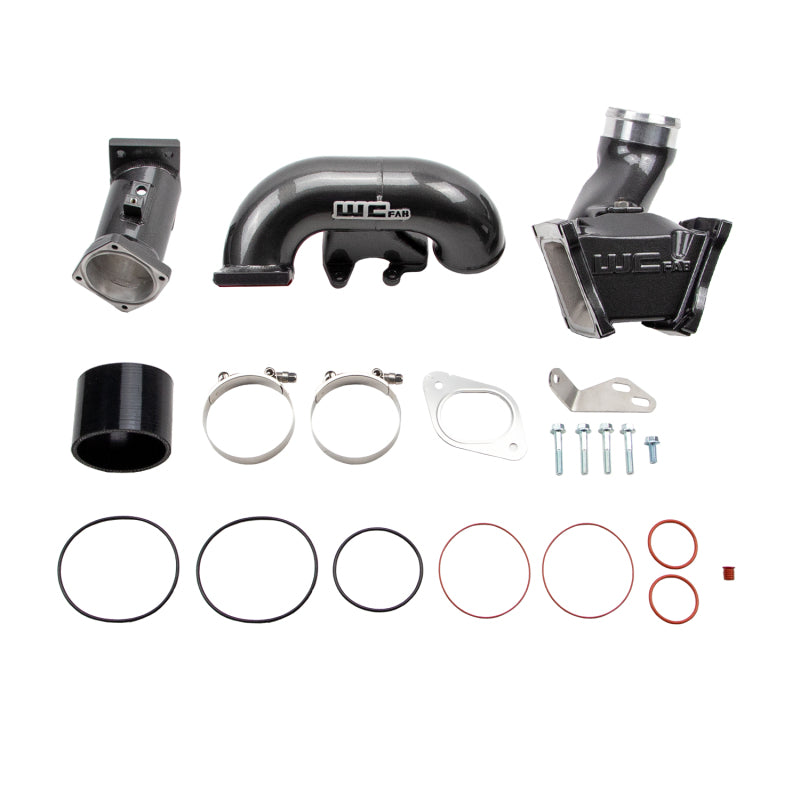

• Includes High Quality Silicone Boot, Stainless Steel T-Bolt Clamps, MAP Sensor Seal, New O-Ring Seals for Bridge, Grid Heater & EGR Flanges, New Up Pipe to EGR Gasket, Grid Heater Install Hardware and Throttle Valve Support Bracket
• Compatible with stock trucks. No other modifications or upgrades necessary!
• Eliminates restrictions and known failure points in OEM design
• WCFab's Signature 3" Two Piece Y-Bridge

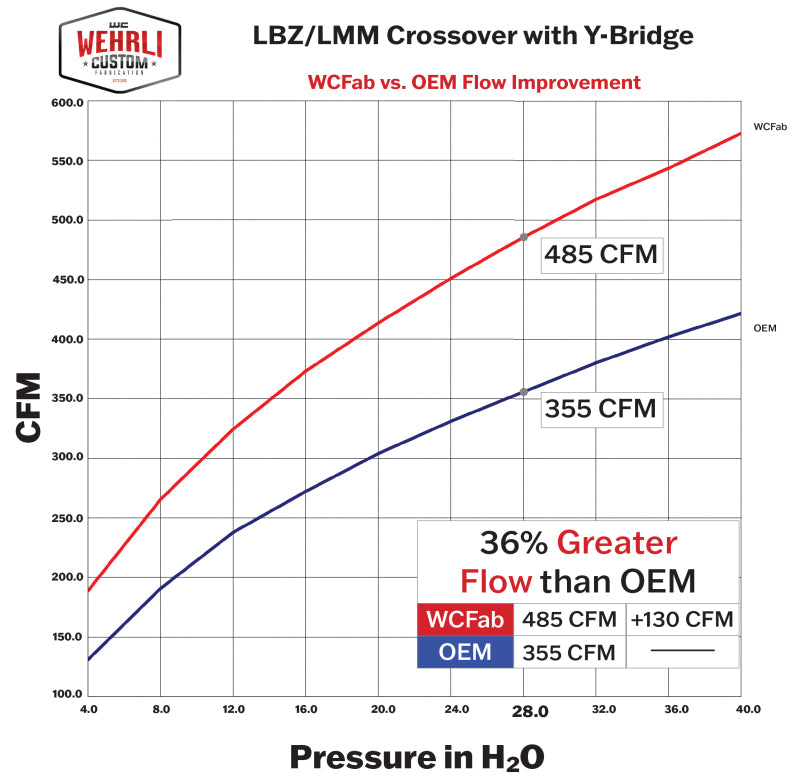

• 36% Improvement in Air Flow Over Stock
• 3" Upper Intercooler Crossover Pipe
• No Tuning Required, Bolt On!
• 3" Lower Intercooler Pipe
• Custom Powder Coat Finish
• Made in USA

Fitment:
2007 Chevrolet Silverado 2500 HD
2007 Chevrolet Silverado 3500 HD
2007 GMC Sierra 2500 HD
2007 GMC Sierra 3500 HD
2008 Chevrolet Silverado 2500 HD
2008 Chevrolet Silverado 3500 HD
2008 GMC Sierra 2500 HD
2008 GMC Sierra 3500 HD
2009 Chevrolet Silverado 2500 HD
2009 Chevrolet Silverado 3500 HD
2009 GMC Sierra 2500 HD
2009 GMC Sierra 3500 HD
2010 Chevrolet Silverado 2500 HD
2010 Chevrolet Silverado 3500 HD
2010 GMC Sierra 2500 HD
2010 GMC Sierra 3500 HD


Air Freight Prohibited: false
Not Carb Approved: true
Carb Acknowledgement Required: true
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: Compliant
Units Per Sku: 1
