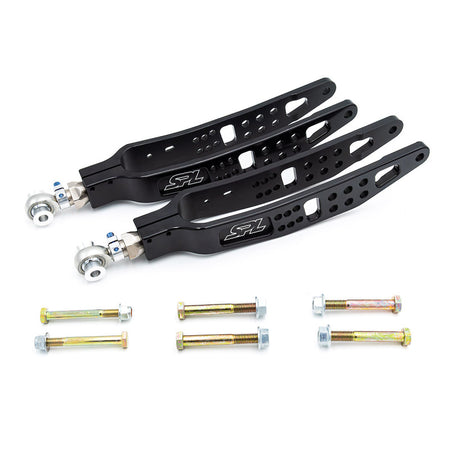

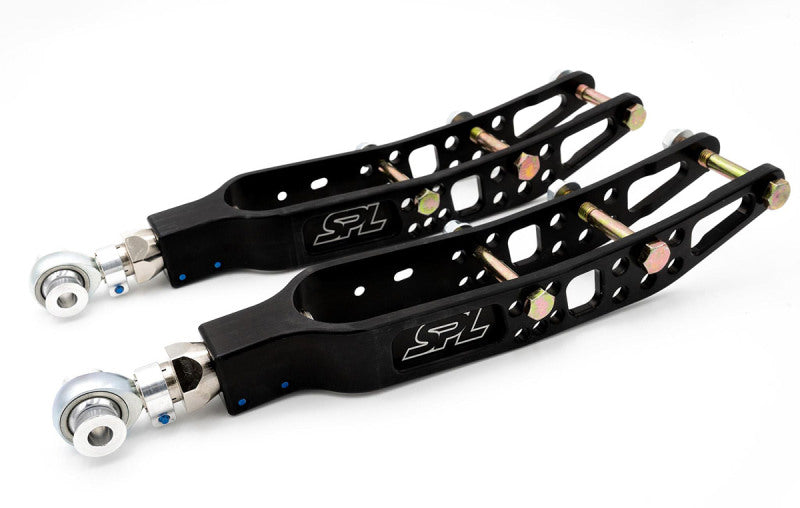

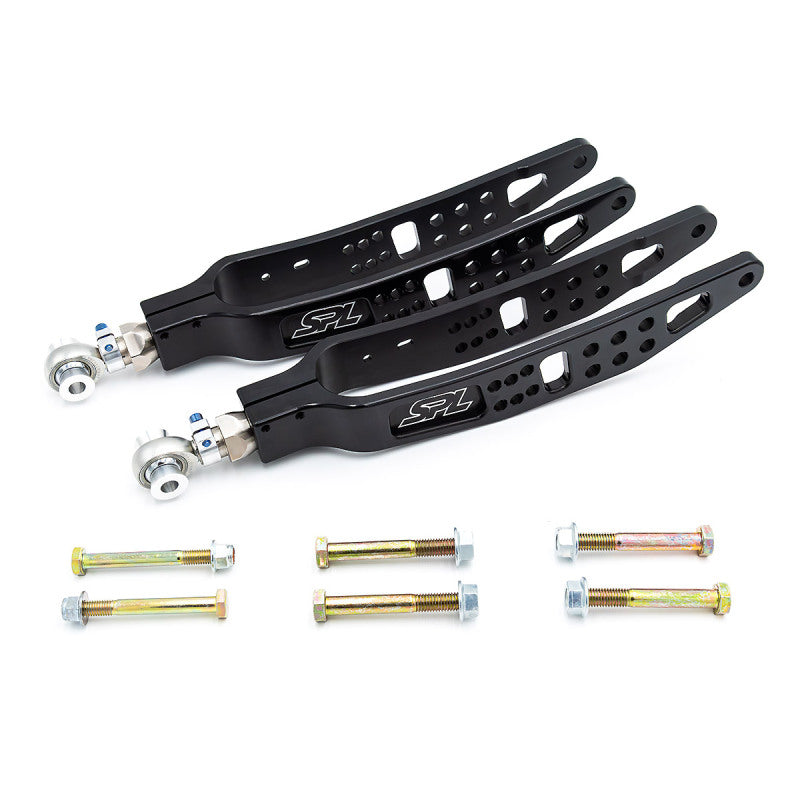

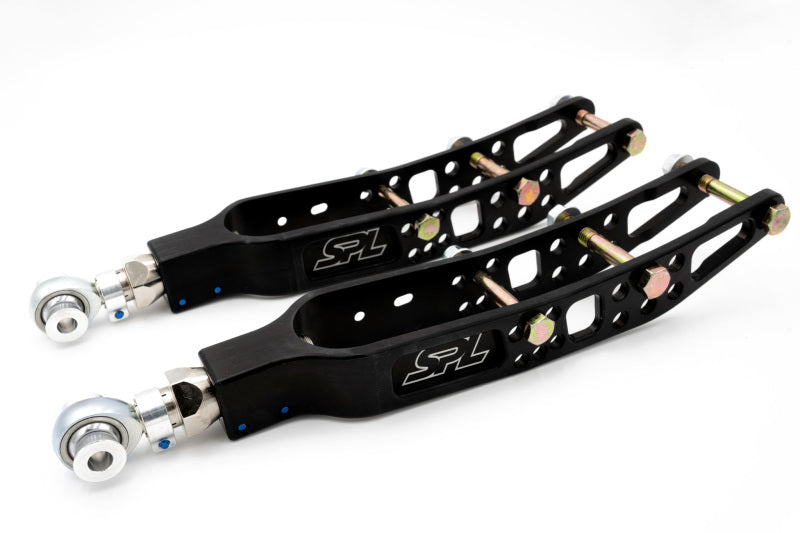

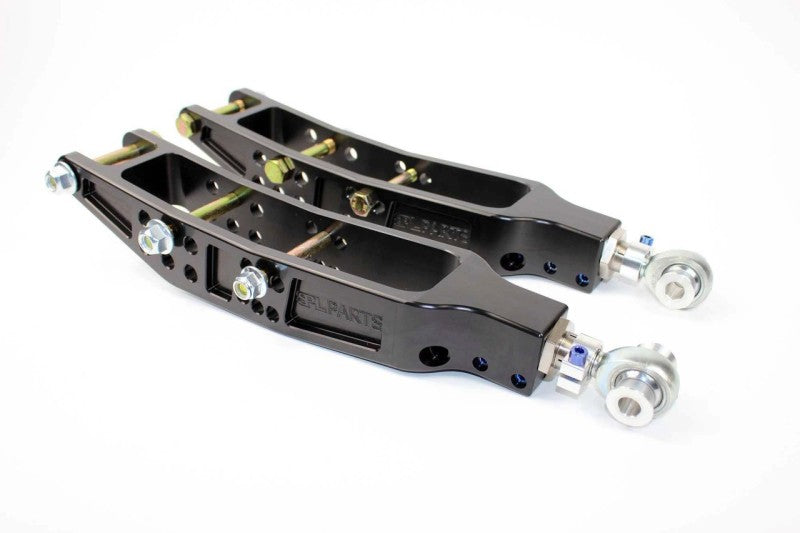

SPL Parts 2013+ Subaru BRZ/Toyota 86 / 2015+ Subaru WRX/STI Rear Lower Camber Arms

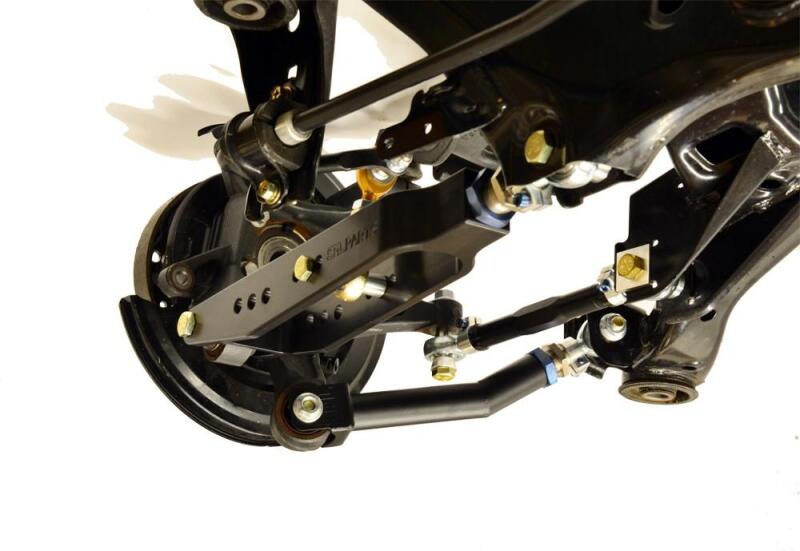

SPL adjustable Rear Lower Camber Arms (RLL) for the GR86/BRZ/WRX allow for adjustable camber, track, and installed motion ratios while significantly reducing the unwanted dynamic alignment change and binding that occurs with rubber or polyurethane bushings. The lower arm also handles the forces transmitted through the springs, shocks, and sway bar. By increasing the strength (rigidity) of the arm and using a spherical the rear suspension will have improved response, better lateral grip, and provide clearer feedback to the driver.

Adjustable Motion Ratios

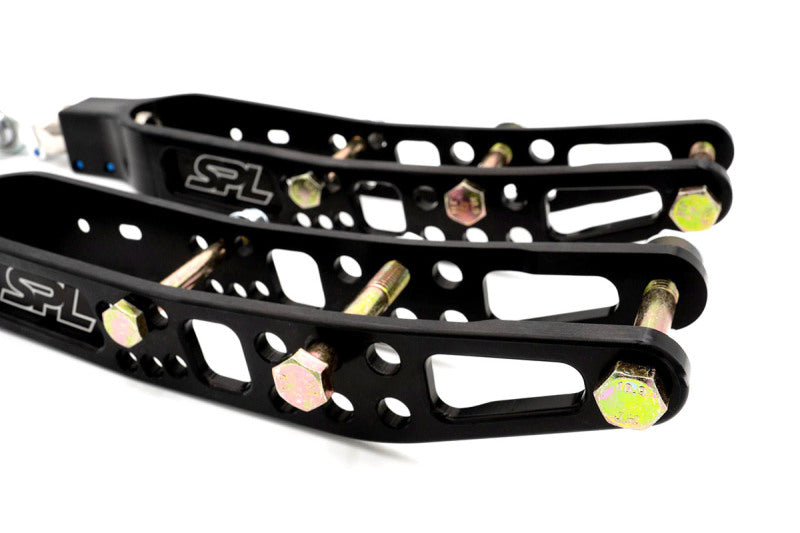

The three position mounting holes for the sway bar endlinks and shock mount allow you to adjust the mounting points to prevent endlink binding and quickly adjust motion ratios to change spring and sway bar effectiveness. Simply put, it's like having adjustable spring rates without a spring replacement. For example, a 6.0 kg/mm (336 lbs/in) main spring could act as a 6.8 (380 lbs/in), 6.0, or 5.2 kg/mm (294 lbs/in) spring, giving +/- 13% of adjustability. Likewise the sway bar endlink can be installed to act like a 0.5mm larger or smaller bar, so an 18mm bar would act like an 18.5mm, 18.0mm, or 17.5mm bar depending on setup (endlink geometry permitting).

Unrivaled Adjustability Range

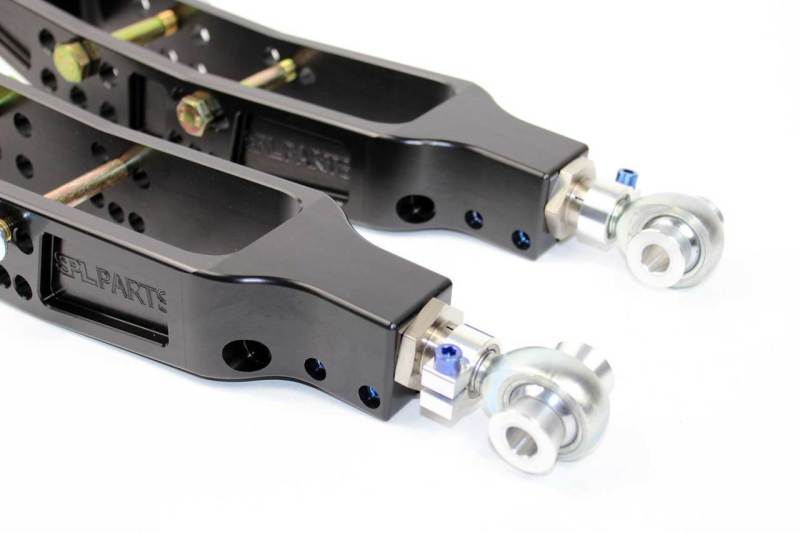

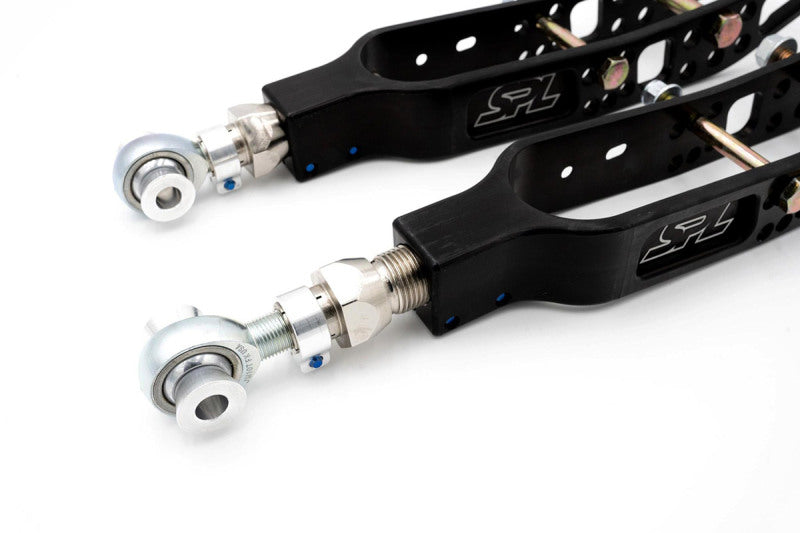

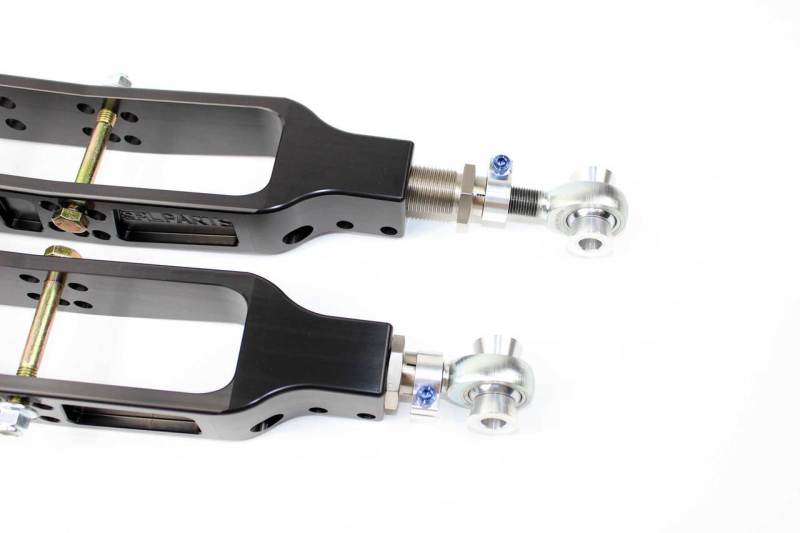

The large-diameter chromoly double adjuster and 5/8" (15.8mm) rod end allows for up to 1.375" (35mm) of total length adjustment, a 50% increase compared to many other options on the market.

Benefits
Large Range of Camber and Motion Ratio Adjustability
Lightweight: 3.57 lbs (1.62 kg) per Arm (17% Lighter than OEM)
Eliminates Camber Loss to Bushing Deflection
Improves Suspension Response and Driving Feel
Easier, On-Car Adjustment + No Jam Nuts
Self-Cleaning, US Made, PTFE-Lined FK Bearings

Materials
6061-T6 Aluminum Arms (Anodized Black)
6061-T6 Aluminum Spacers and 360º Clamps
4130 Chromoly Steel Double Adjuster (Electroless Nickel Plated)
Ti-6Al-4V Titanium 1/4-20 Socket Head Allen Screws (Anodized Blue)
SPL FR-S / BRZ / GT86 Rear Adjustable Camber Arms

• Proudly made, engineered, and assembled in the USA.

Fitment:
2008 Subaru Impreza
2009 Subaru Impreza
2010 Subaru Impreza
2011 Subaru Impreza
2012 Subaru Impreza
2013 Scion FR-S
2013 Subaru BRZ
2013 Subaru Impreza
2014 Scion FR-S
2014 Subaru BRZ
2014 Subaru Impreza
2015 Scion FR-S
2015 Subaru BRZ
2015 Subaru WRX
2015 Subaru WRX STI
2016 Scion FR-S
2016 Subaru BRZ
2016 Subaru WRX
2016 Subaru WRX STI
2017 Subaru BRZ
2017 Subaru WRX
2017 Subaru WRX STI
2017 Toyota 86
2018 Subaru BRZ
2018 Subaru WRX
2018 Subaru WRX STI
2018 Toyota 86
2019 Subaru BRZ
2019 Subaru WRX
2019 Subaru WRX STI
2019 Toyota 86
2020 Subaru BRZ
2020 Subaru WRX
2020 Subaru WRX STI
2020 Toyota 86
2021 Subaru WRX
2021 Subaru WRX STI
2022 Toyota GR86
2023 Toyota GR86
2024 Toyota GR86
