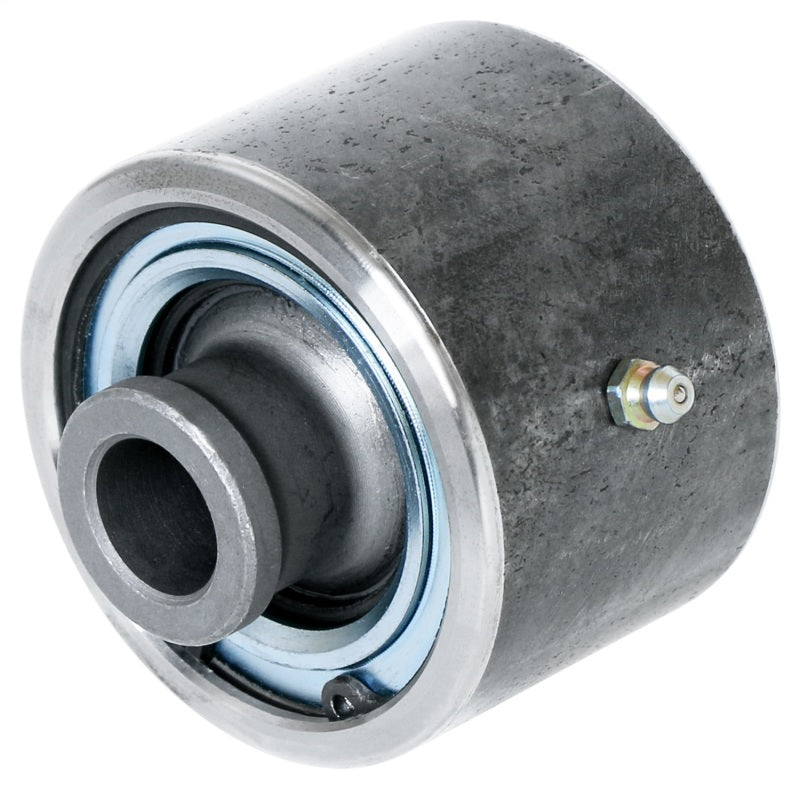

RockJock Johnny Joint Rod End 3in Narrow Weld-On Chromoly 3.250in x .750in Ball Ext. Greased
Couldn't load pickup availability
Ready to install and hit the road!
All parts come with the essentials you need for a smooth fit and clear instructions. From performance upgrades to custom styling, unbox and get your ride ready with confidence!
Got questions?
Feel free to get in touch
RockJocks narrow style weld-on Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The 3 in. narrow style outer shell is weldable CNC machined chromoly tubing that is fitted with a zerk fitting for greasing. This specific joint features a 3.250 in. mounting width ball with a .750 in. thru hole.
Johnny Joint® Rod End; 3 in.; Narrow Weld-On; Chromoly; 3.250 in. x 0.750 in. Ball; Externally Greased;
Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: false
