ICON S2 Front 2.5 Omega Series Shocks RR - Pair

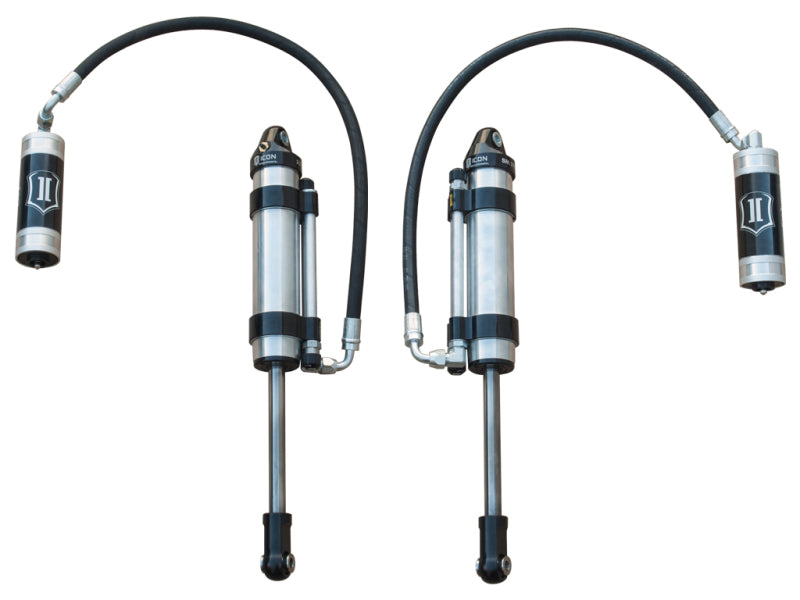

ICON Omega Series Bypass shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in length but allow the user to customize the ride characteristics to their liking through adjustment of the bypass valves. Like all ICON shock absorbers, Omega Series shocks are 100% rebuildable and 100% revalveable. ICON’s use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used, creates a significant increase in damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON Bypass Valve is an externally adjustable valve that restricts oil flow through the bypass tube and provides 28 settings of compression and rebound adjustment with no tools required.
ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs, damping adjustability, and are 100% rebuildable/revalveable.

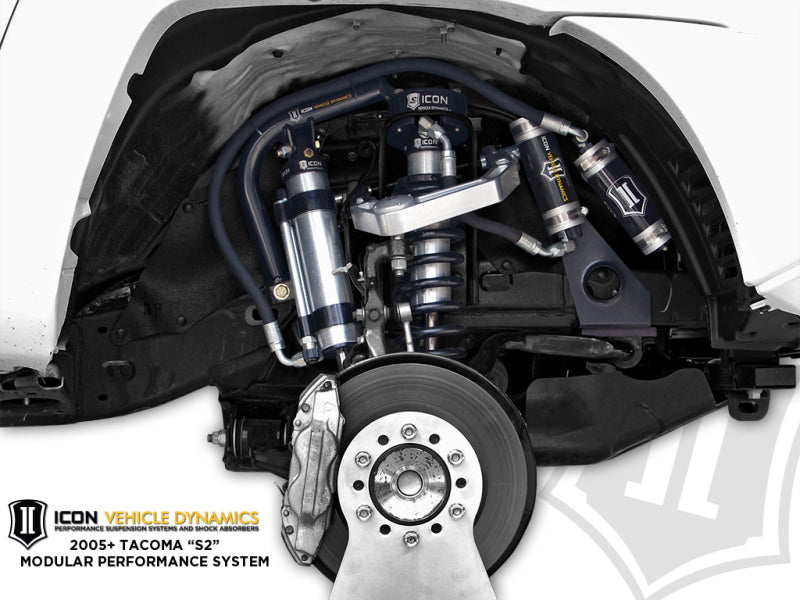

TECH NOTE: Fits ICON S2 Secondary Shock System only. May not fit other aftermarket stock width front lower control arm kits with secondary shock compatibility and matching secondary shock hoop.

• ICON's Bypass Valve technology allows adjustment of compression and rebound damping with high resolution across the entire adjustment range


• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road


• Internal “Bump Zone” increases damping force to provide more control as the shock approaches full compression


• Hand adjustable bypass valves with 28 detented settings at quarter turn increments for precise suspension tuning


• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish


• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range


• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use


• PTFE lined spherical bearings and application specific mounting hardware


• 7/8” diameter induction hardened, chrome plated shock shaft


• 6061 aircraft grade aluminum CNC machined components


• Bypass tubes are replaceable in the event of damage


• 100% Revalveable


• 100% Rebuildable

Fitment:
2003 Lexus GX470
2003 Toyota 4Runner
2004 Lexus GX470
2004 Toyota 4Runner
2005 Lexus GX470
2005 Toyota 4Runner
2005 Toyota Tacoma
2006 Lexus GX470
2006 Toyota 4Runner
2006 Toyota Tacoma
2007 Lexus GX470
2007 Toyota 4Runner
2007 Toyota FJ Cruiser
2007 Toyota Tacoma
2008 Lexus GX470
2008 Toyota 4Runner
2008 Toyota FJ Cruiser
2008 Toyota Tacoma
2009 Lexus GX470
2009 Toyota 4Runner
2009 Toyota FJ Cruiser
2009 Toyota Tacoma
2010 Toyota 4Runner
2010 Toyota FJ Cruiser
2010 Toyota Tacoma
2011 Toyota 4Runner
2011 Toyota FJ Cruiser
2011 Toyota Tacoma
2012 Toyota 4Runner
2012 Toyota FJ Cruiser
2012 Toyota Tacoma
2013 Toyota 4Runner
2013 Toyota FJ Cruiser
2013 Toyota Tacoma
2014 Toyota 4Runner
2014 Toyota FJ Cruiser
2014 Toyota Tacoma
2015 Toyota 4Runner
2015 Toyota Tacoma
2016 Toyota 4Runner
2016 Toyota Tacoma
2017 Toyota 4Runner
2017 Toyota Tacoma
2018 Toyota 4Runner
2018 Toyota Tacoma
2019 Toyota 4Runner
2019 Toyota Tacoma
2020 Toyota 4Runner
2020 Toyota Tacoma
2021 Toyota 4Runner
2021 Toyota Tacoma
2022 Toyota 4Runner
2022 Toyota Tacoma
2023 Toyota 4Runner
2023 Toyota Tacoma
2024 Toyota 4Runner

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: false
