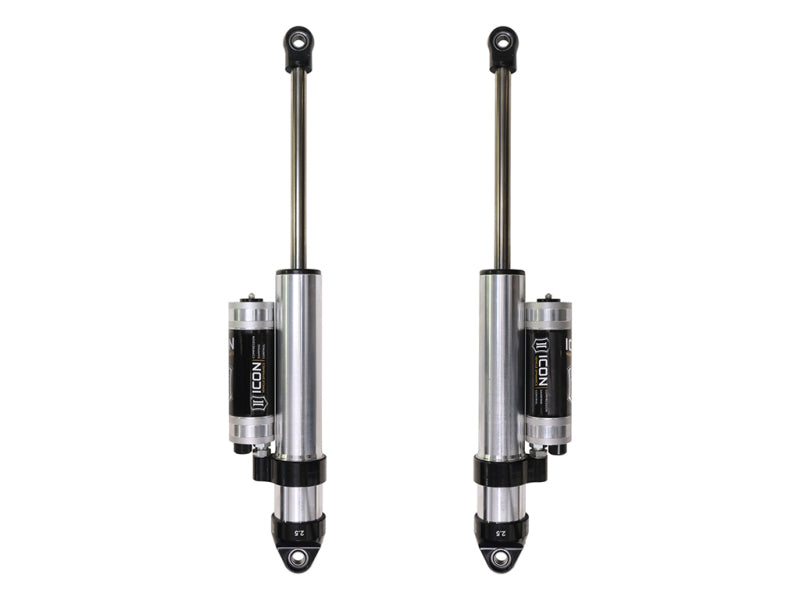

ICON 2019+ GM 1500 0-2in Rear 2.5 Series Shocks VS PB CDCV - Pair

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
ICON 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.
TECH NOTE: Compatible with 0-2" of rear lift on most models. Not recommended with any additional rear lift on Silverado 1500 Trail Boss and Sierra 1500 AT4.

• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road


• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression


• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish


• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob


• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range


• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use


• PTFE lined spherical bearings and application specific mounting hardware


• 7/8” diameter induction hardened, chrome plated shock shaft


• Nitrogen charged monotube design with piggyback reservoir


• 6061 aircraft grade aluminum CNC machined components


• 100% Revalveable


• 100% Rebuildable

Fitment:
2019 Chevrolet Silverado 1500
2019 GMC Sierra 1500
2020 Chevrolet Silverado 1500
2020 GMC Sierra 1500
2021 Chevrolet Silverado 1500
2021 GMC Sierra 1500
2022 Chevrolet Silverado 1500
2022 Chevrolet Silverado 1500 LTD
2022 GMC Sierra 1500
2022 GMC Sierra 1500 Limited
2023 Chevrolet Silverado 1500
2023 GMC Sierra 1500

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: false
