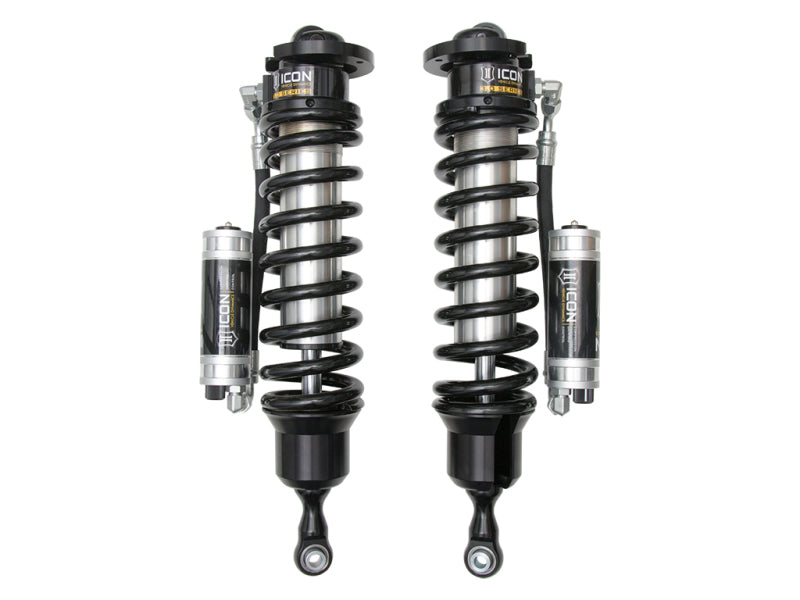

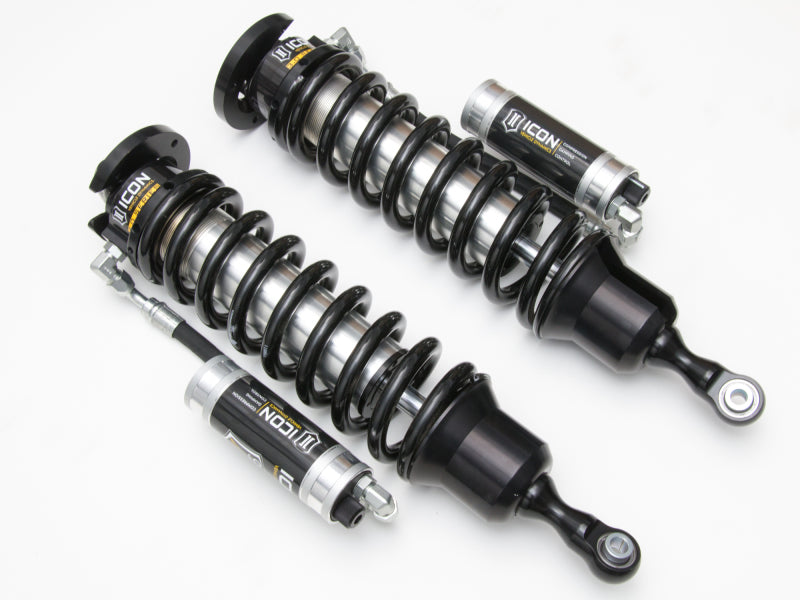

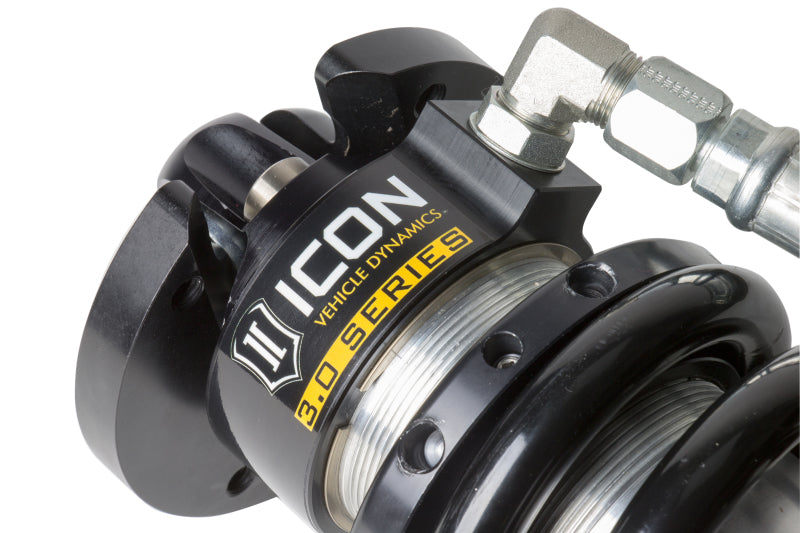

ICON 2008+ Toyota Land Cruiser 200 3.0 Series Shocks VS RR CDCV Coilover Kit

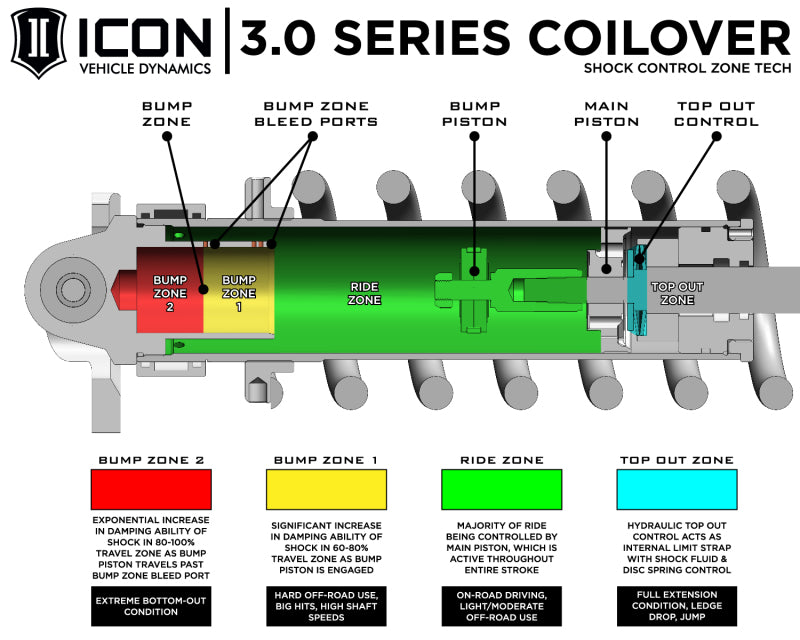

Compared to the 2.5” diameter coilovers the 3.0 Series shocks see a piston surface area increase of 50% in the ride zone, and 100% in the “Bump Zone”. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.
2008-UP LC 200 3.0 VS REMOTE RESERVOIR CDCV COILOVER KIT
Recommended Aftermarket Tires: 34 x 10.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

• Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations


• ICON’s multi-stage, tuneable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel


• Increased wheel travel and vehicle specific valving provides comfortable and consistent ride quality on and off-road


• 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping with temperature increase


• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability


• Significant increase in damping ability for excellent performance in extreme off-road conditions


• High quality ICON-engineered Eibach springs offer increased travel and performance


• PTFE lined COM12 spherical bearings ensure maximum strength and durability


• Multi stage CAD plated shock body with hard anodized piston and top cap


• Direct bolt-in to OEM shock location makes for an easy install


• Adjustable coilovers provide 2.25-3.5” of front lift height


• Heavy duty 1” CNC machined shock shafts


• Fully serviceable

Fitment:
2008 Toyota Land Cruiser
2009 Toyota Land Cruiser
2010 Toyota Land Cruiser
2011 Toyota Land Cruiser
2013 Toyota Land Cruiser
2014 Toyota Land Cruiser
2015 Toyota Land Cruiser
2016 Toyota Land Cruiser
2017 Toyota Land Cruiser
2018 Toyota Land Cruiser
2019 Toyota Land Cruiser
2020 Toyota Land Cruiser
2021 Toyota Land Cruiser
