ICON 2005+ Ford Super Duty Rear Fixed Front Upper Links
Couldn't load pickup availability
Ready to install and hit the road!
All parts come with the essentials you need for a smooth fit and clear instructions. From performance upgrades to custom styling, unbox and get your ride ready with confidence!
Got questions?
Feel free to get in touch

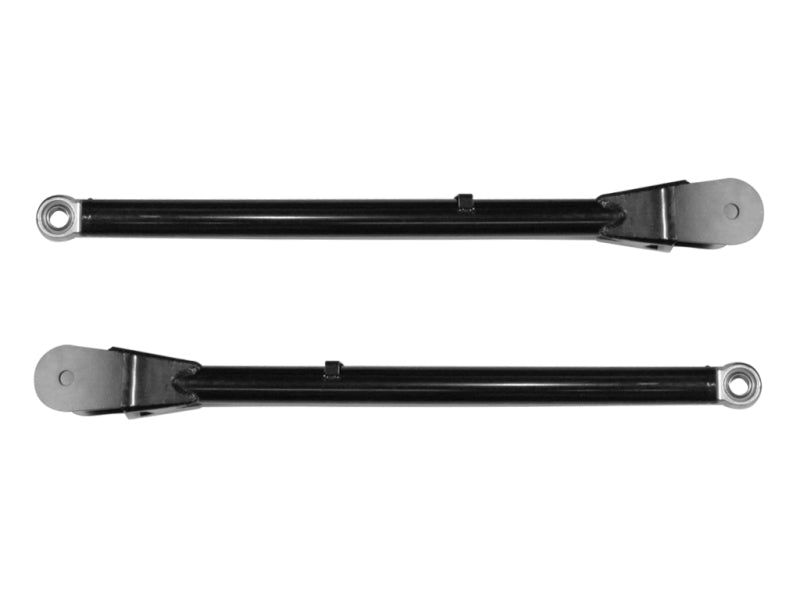

These upper links are an essential component of the ICON 2005-2022 Ford Super Duty 4-Link Conversion System. This 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation of the front suspension by eliminating bushing bind and improves handling of the truck by maintaining consistent caster angles through the entirety of the front suspension travel range. The large, deflective radius arm bushings are replaced with competition grade, PTFE lined spherical bearings in each link. This harder surface minimizes deflection to further increase the overall handling characteristics for maximum predictability and suspension responsiveness. Additionally, the ICON double adjusters in the lower links allows tuning of caster angle while the links are installed on the vehicle, easing the front-end alignment process.

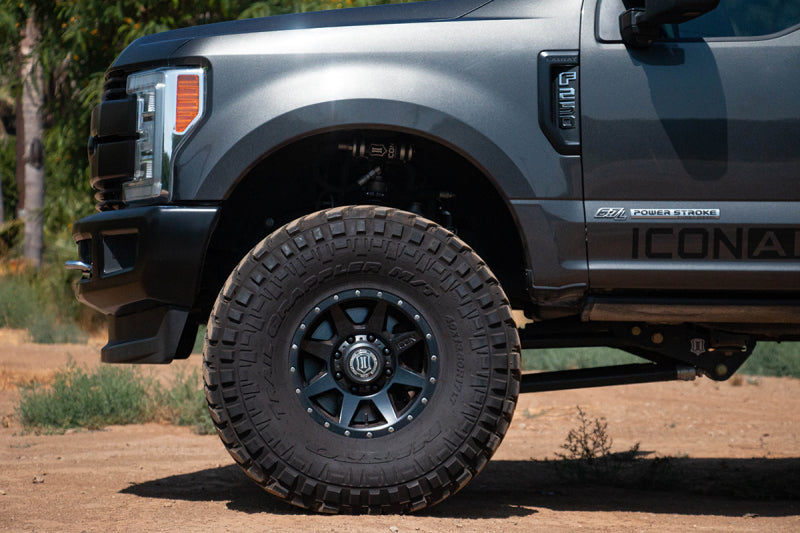

The ICON 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation and improves handling of the truck by maintaining consistent caster angles and eliminating bushing bind in the stock radius arms.
TECH NOTE: Requires ICON 4-Link brackets depending on year range: part number 164500, 164503, or 164504, and ICON lower links, part number 164502, for complete installation.
- 4-Link system maintains consistent caster angles through suspension travel for superior handling characteristics
- Upper links are constructed from CNC machined 2” x .188” wall DOM steel tubing
- Allow on-vehicle caster adjustment via ICON double adjusters in lower links
- Fabricated components covered under ICON's Limited Lifetime Warranty
- Corrosion resistant semi-gloss black powder coat finish
- Improves front end articulation and overall drivability
- PTFE lined FK spherical bearings eliminate deflection
Fitment:
2005 Ford F-250 Super Duty
2005 Ford F-350 Super Duty
2006 Ford F-250 Super Duty
2006 Ford F-350 Super Duty
2007 Ford F-250 Super Duty
2007 Ford F-350 Super Duty
2008 Ford F-250 Super Duty
2008 Ford F-350 Super Duty
2009 Ford F-250 Super Duty
2009 Ford F-350 Super Duty
2010 Ford F-250 Super Duty
2010 Ford F-350 Super Duty
2011 Ford F-250 Super Duty
2011 Ford F-350 Super Duty
2012 Ford F-250 Super Duty
2012 Ford F-350 Super Duty
2013 Ford F-250 Super Duty
2013 Ford F-350 Super Duty
2014 Ford F-250 Super Duty
2014 Ford F-350 Super Duty
2015 Ford F-250 Super Duty
2015 Ford F-350 Super Duty
2016 Ford F-250 Super Duty
2016 Ford F-350 Super Duty
2017 Ford F-250 Super Duty
2017 Ford F-350 Super Duty
2018 Ford F-250 Super Duty
2018 Ford F-350 Super Duty
2019 Ford F-250 Super Duty
2019 Ford F-350 Super Duty
2020 Ford F-250 Super Duty
2020 Ford F-350 Super Duty
2021 Ford F-250 Super Duty
2021 Ford F-350 Super Duty
2022 Ford F-250 Super Duty
2022 Ford F-350 Super Duty
Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Clearance Item: t
Regular Stock: false
