ICON 2005+ Ford Super Duty Radius Arm System
Couldn't load pickup availability
Ready to install and hit the road!
All parts come with the essentials you need for a smooth fit and clear instructions. From performance upgrades to custom styling, unbox and get your ride ready with confidence!
Got questions?
Feel free to get in touch

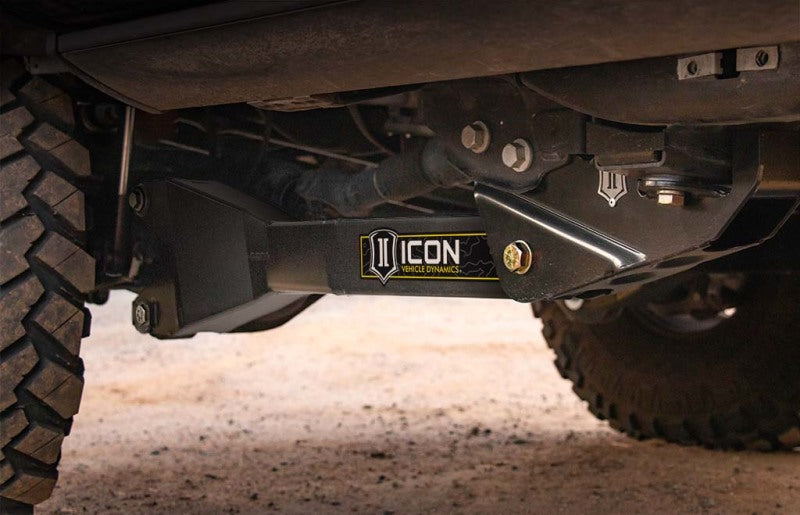

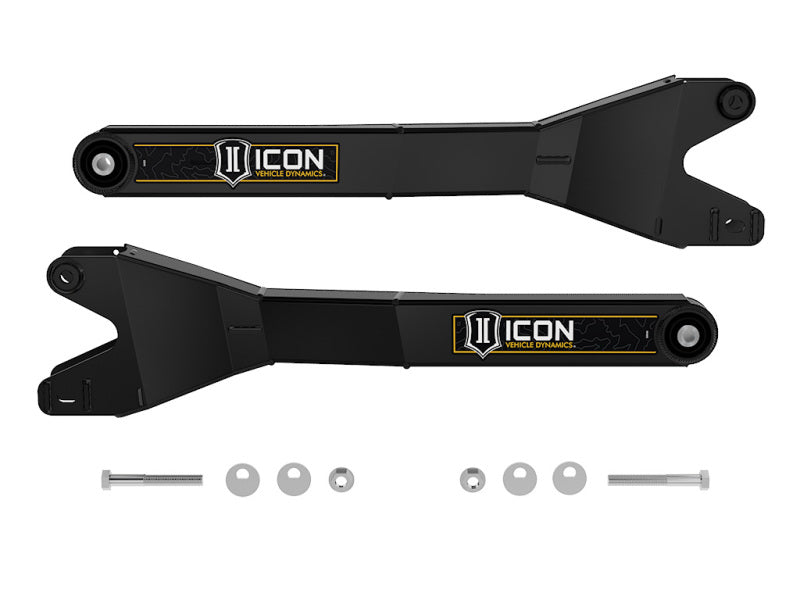

The ICON Vehicle Dynamics Ford 2005-2022 F-250, F-350, and F-450 Super Duty Radius Arm System is designed with adjustable caster cams for use with stock height trucks up to 3” of front lift with the radius arm installed in the factory pivot. When used in conjunction with an ICON radius arm drop bracket system, proper caster can also be maintained for 4” to 7" lifts, including coilover conversion systems. They feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.
The ICON Vehicle Dynamics Ford Super Duty 4WD Radius Arm System is designed with adjustable caster cams and their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock.
TECH NOTE: Radius arm drop brackets required for use with 4-7” lift heights. (ICON part # 64040, 64045, or, 64055)
- Ability to have a 5.5” backspace wheel with 37” tires without contact with the arm at steering lock
- Replaceable sealed pivot bushing provides maintenance free operation
- Built in caster adjustment for optimized return to center
- CNC machined and laser cut steel components
- Semi-gloss black powder coat finish
- Fully boxed design
Fitment:
2005 Ford F-250 Super Duty
2005 Ford F-350 Super Duty
2006 Ford F-250 Super Duty
2006 Ford F-350 Super Duty
2007 Ford F-250 Super Duty
2007 Ford F-350 Super Duty
2008 Ford F-250 Super Duty
2008 Ford F-350 Super Duty
2009 Ford F-250 Super Duty
2009 Ford F-350 Super Duty
2010 Ford F-250 Super Duty
2010 Ford F-350 Super Duty
2011 Ford F-250 Super Duty
2011 Ford F-350 Super Duty
2012 Ford F-250 Super Duty
2012 Ford F-350 Super Duty
2013 Ford F-250 Super Duty
2013 Ford F-350 Super Duty
2014 Ford F-250 Super Duty
2014 Ford F-350 Super Duty
2015 Ford F-250 Super Duty
2015 Ford F-350 Super Duty
2016 Ford F-250 Super Duty
2016 Ford F-350 Super Duty
2017 Ford F-250 Super Duty
2017 Ford F-350 Super Duty
2018 Ford F-250 Super Duty
2018 Ford F-350 Super Duty
2019 Ford F-250 Super Duty
2019 Ford F-350 Super Duty
2020 Ford F-250 Super Duty
2020 Ford F-350 Super Duty
2021 Ford F-250 Super Duty
2021 Ford F-350 Super Duty
2022 Ford F-250 Super Duty
2022 Ford F-350 Super Duty
Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
