ICON 07-16 GM 1500 Delta Joint Kit (Small Taper Only)

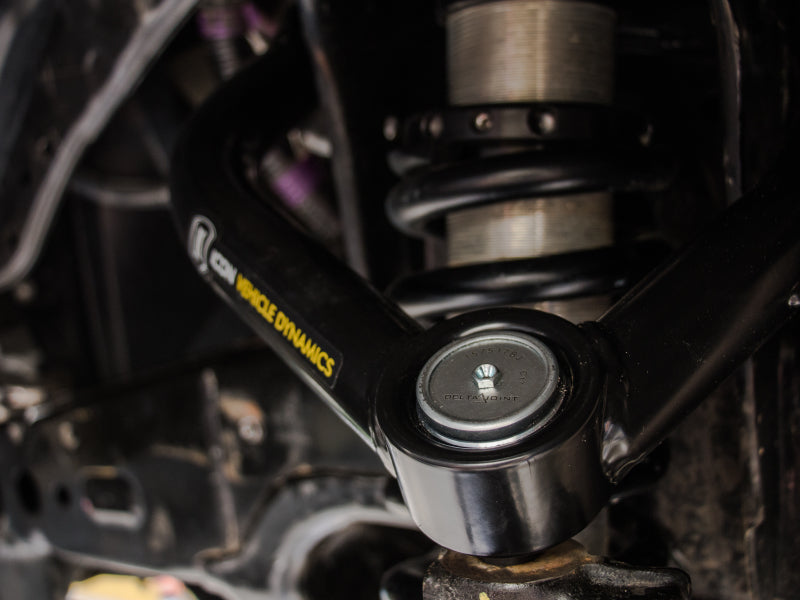

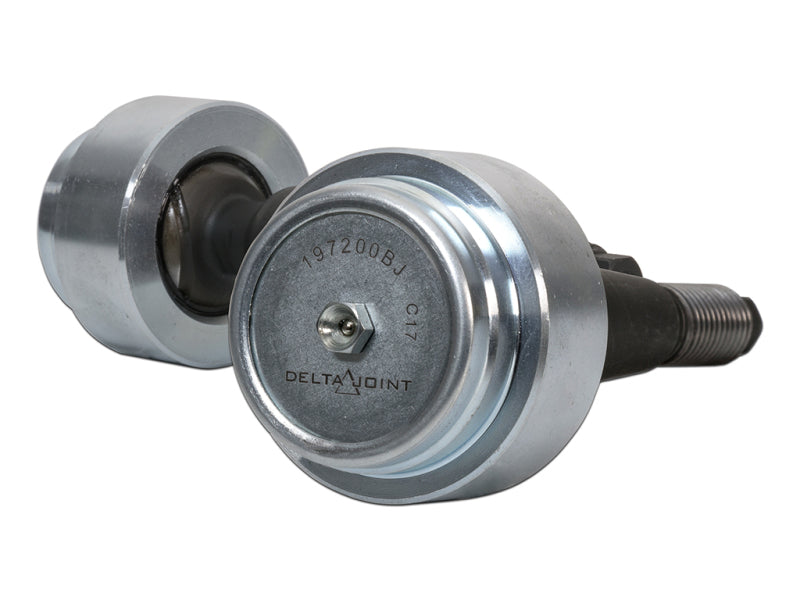

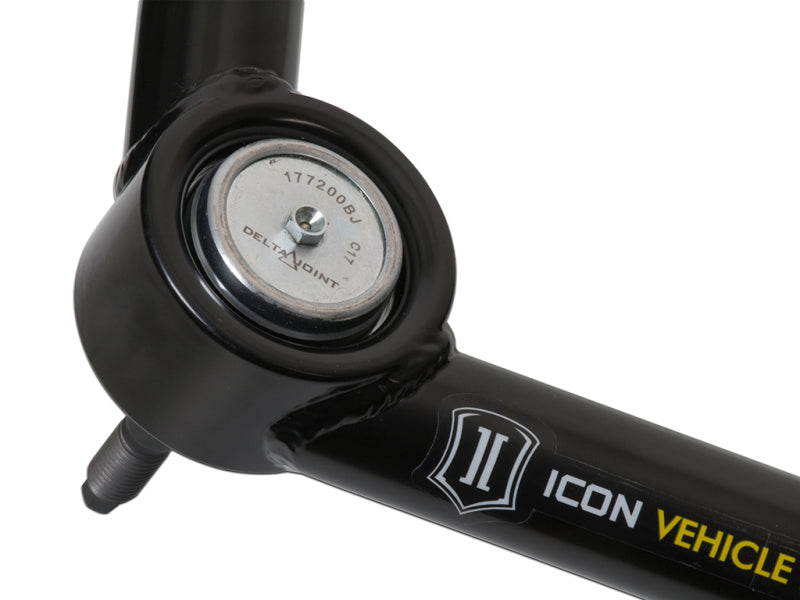

ICON’s Delta Joint is a heavy-duty high-angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint’s zinc plated housing provides the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while also allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and capable of greater angularity than a typical ball joint.
ICON’s Delta Joint is more robust than a uniball and capable of greater angularity than a typical ball joint. Its metal-on-metal construction and a greaseable design increases longevity while also allowing for noise-free operation.
TECH NOTE: If installing on a 2019-2021 Ford Ranger, only compatible with models equipped with aluminum steering knuckles

• 5 Year ICON Limited Warranty (When used with ICON Vehicle Dynamics suspension components, visit www.iconvehicledynamics.com/deltajoint for more info)

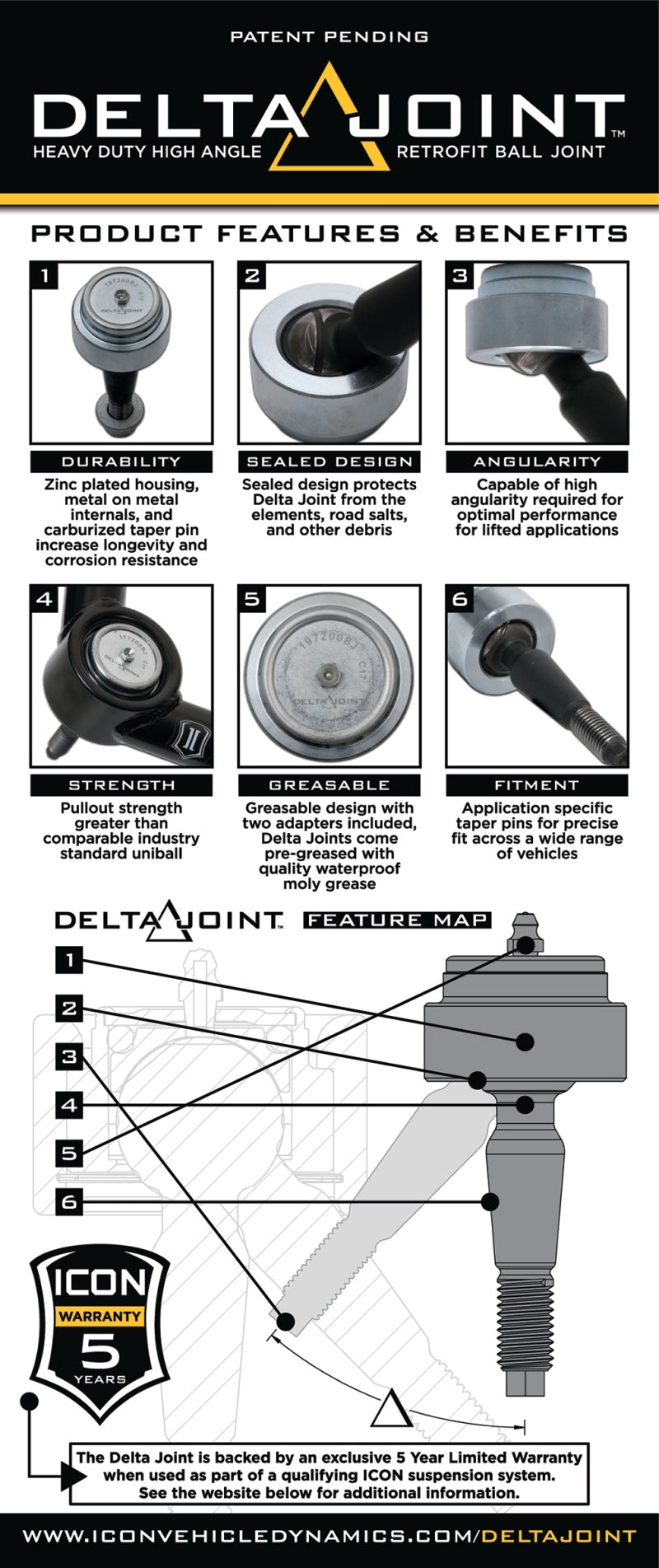

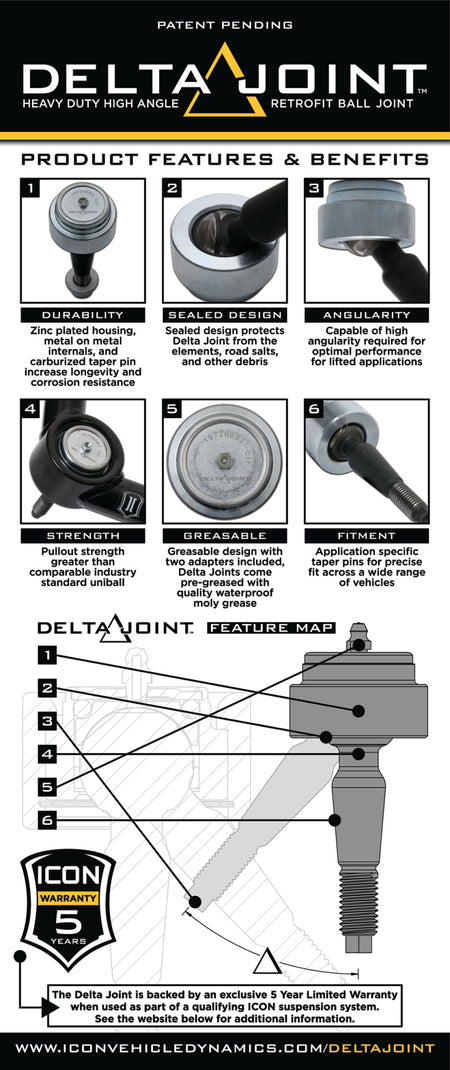

• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability of a ball joint with the performance characteristics of a traditional uniball


• Carburized taper pin provides increased corrosion resistance, decreased internal friction, and less chance of thread galling on assembly


• Sealed design and zinc plated housing protects Delta Joint from the elements, road salts, and other debris


• Metal on metal internals and a greasable design for maximum longevity and noise-free operation

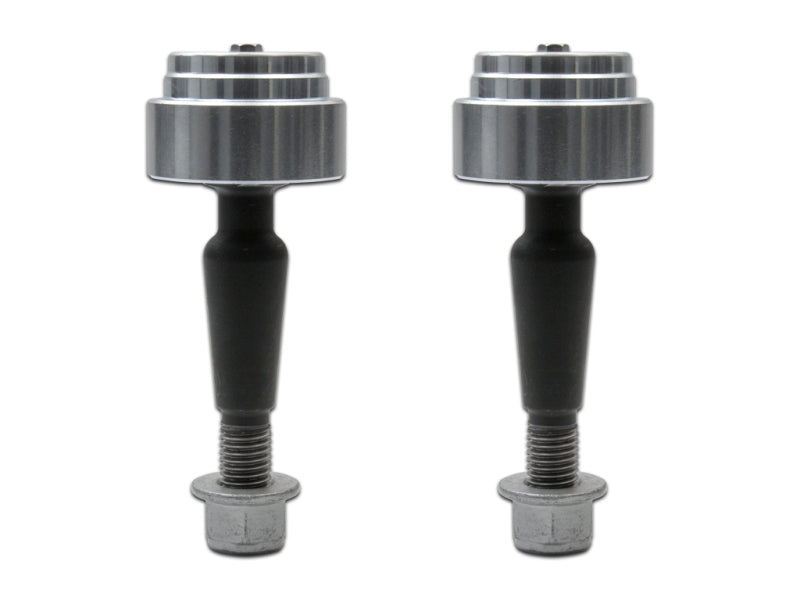

• Application specific taper pins for precise fit across a wide range of vehicles


• Pullout strength greater than comparable industry standard uniball


• Capable of high angularity required for lifted applications

Fitment:
2007 Chevrolet Silverado 1500
2007 GMC Sierra 1500
2008 Chevrolet Silverado 1500
2008 GMC Sierra 1500
2009 Chevrolet Silverado 1500
2009 GMC Sierra 1500
2010 Chevrolet Silverado 1500
2010 GMC Sierra 1500
2011 Chevrolet Silverado 1500
2011 GMC Sierra 1500
2012 Chevrolet Silverado 1500
2012 GMC Sierra 1500
2013 Chevrolet Silverado 1500
2013 GMC Sierra 1500
2014 Chevrolet Silverado 1500
2014 GMC Sierra 1500
2015 Chevrolet Silverado 1500
2015 GMC Sierra 1500
2016 Chevrolet Silverado 1500
2016 GMC Sierra 1500
2019 Ford Ranger
2020 Ford Ranger
2021 Ford Ranger
2022 Ford Ranger

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: false
