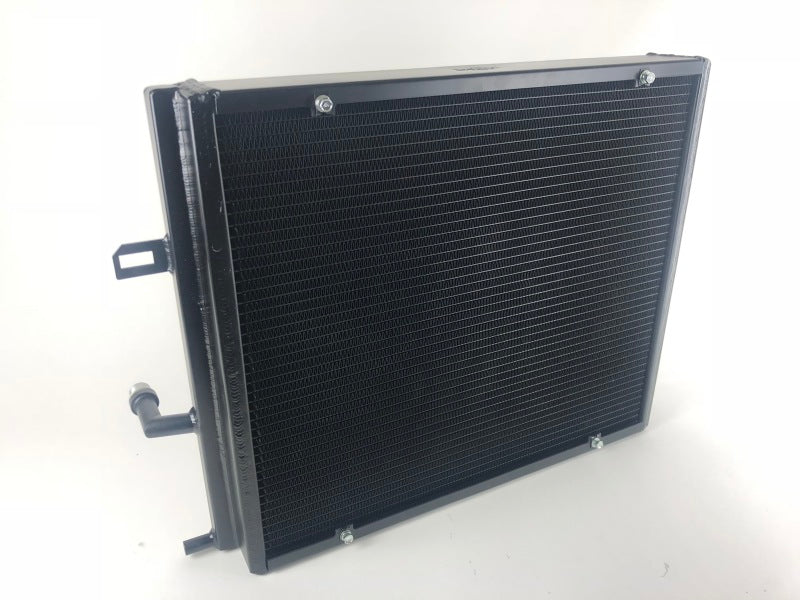

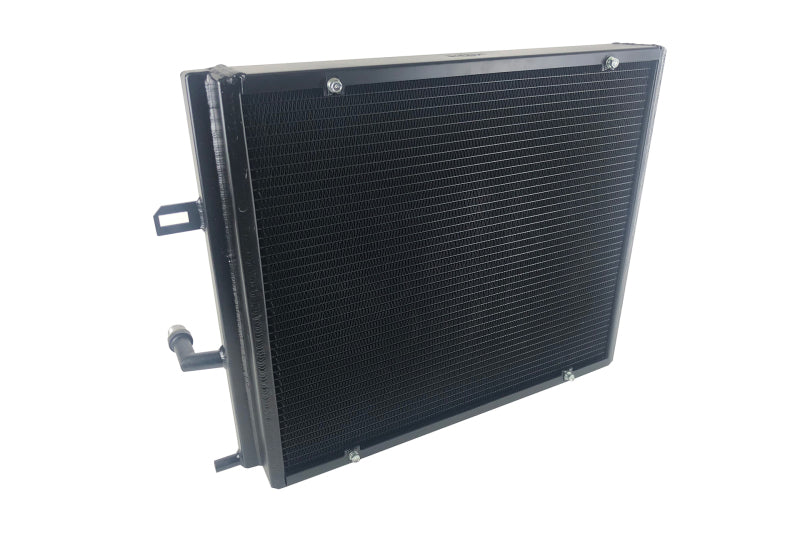

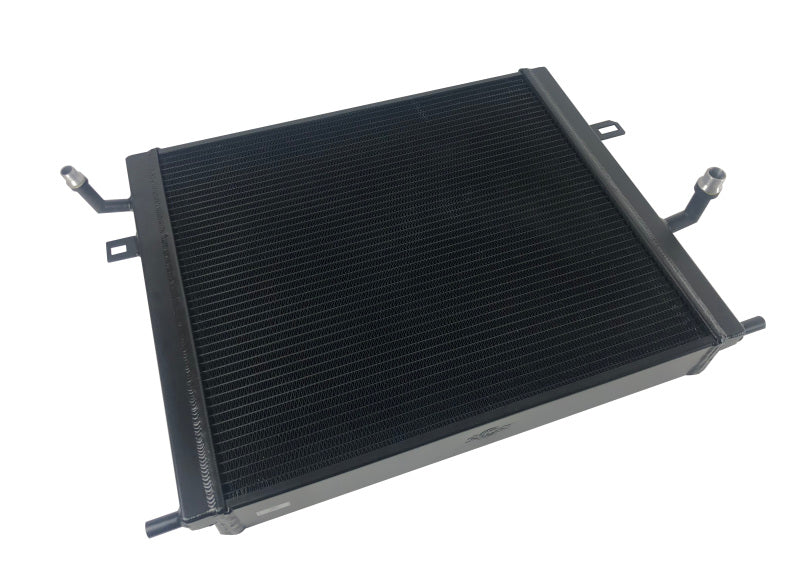

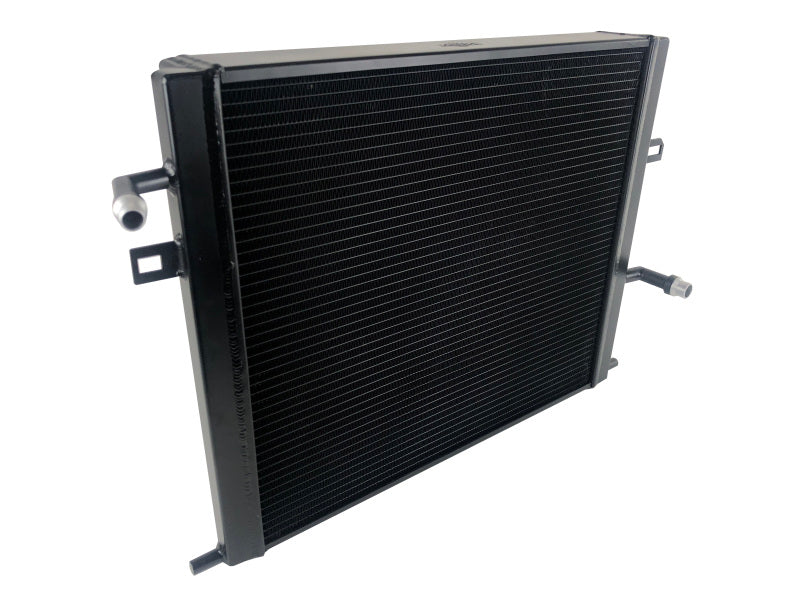

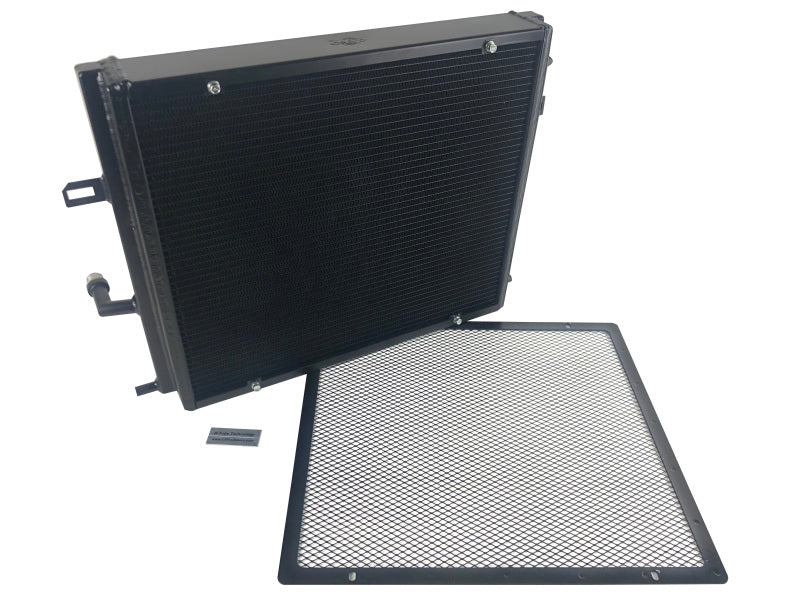

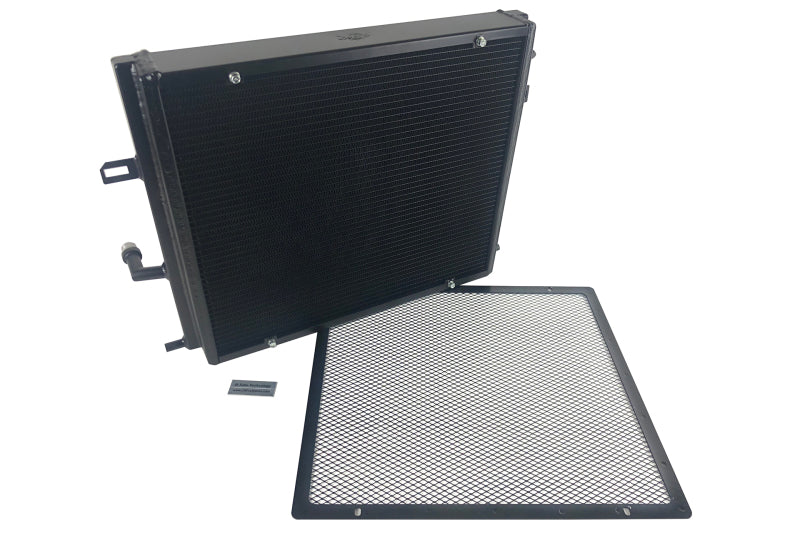

CSF BMW B58/B48 Front Mount Triple-Pass Heat Exchanger w/Rock Guard - Black

The original OEM B58 heat exchanger is a 1-row unit that is 27mm thick. In comparison, CSF has used its industry-exclusive world's largest 2-row core (68mm) with CSF's B-Tube technology. A unique tank design allows the larger CSF core to still fit into the OEM cooling system housing. Another critical feature of the CSF BMW B58 high-performance heat exchanger is its unique triple-pass flow design. The water traveling through the upgraded heat exchanger flows through the radiator three times before exiting the cooler and flowing back into the manifold charge cooler. This ensures that the outlet water temperature of the heat exchanger is the absolute lowest it can be. The OEM design, as well as more expensive aftermarket designs, all have single-pass flow structures.
Significantly reduce Intake Air Temperatures (IAT) for Maximum Performance (with Faster Heat Soak Recovery) on your B58/B48 Powered BMW with a CSF Heat Exchangers.
The CSF #8131B Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

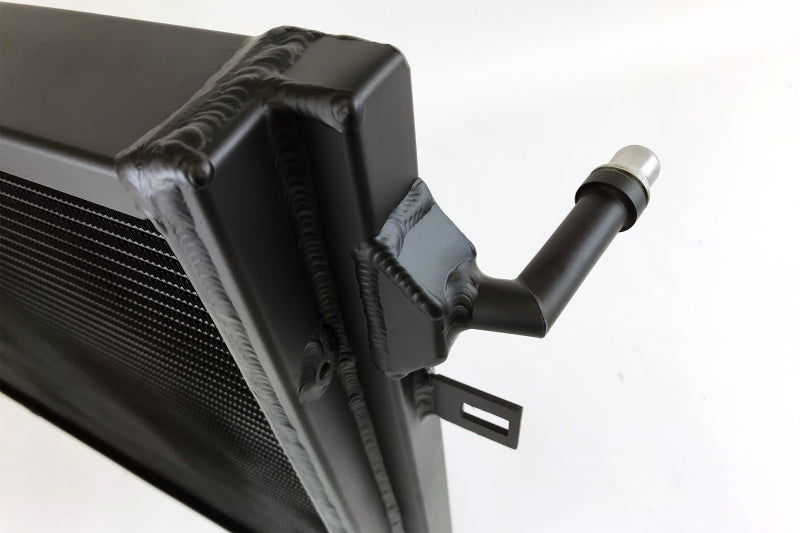

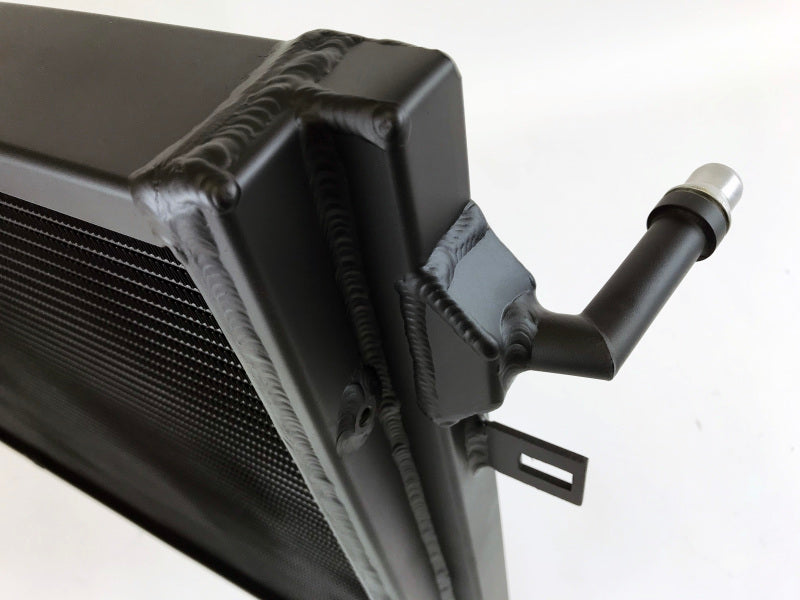

• Direct Plug-and-Play Design, Including CNC Machined "Quick Connect" Inlet/Outlet Water Fittings


• 68mm 2-Row Core with CSF's B-Tube Technology (World's Largest 2-Row Core)


• OEM CNC Machined Mounting Location Pins and Brackets


• Core Size: 524mm Length x 478mm Height x 69mm Wide


• Replaces OEM Part Number: 17118741830


• No Modifications Needed to Install


• 6.5mm Multi-Louvered Fin Height

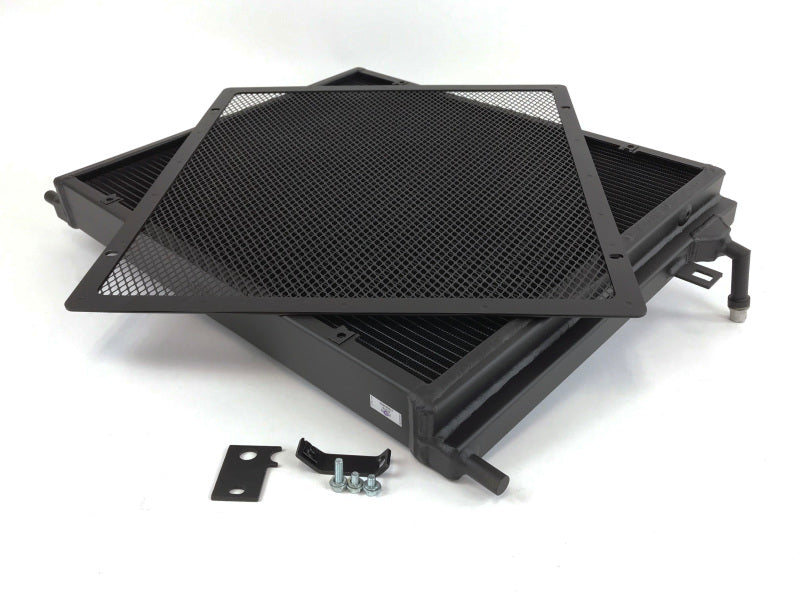

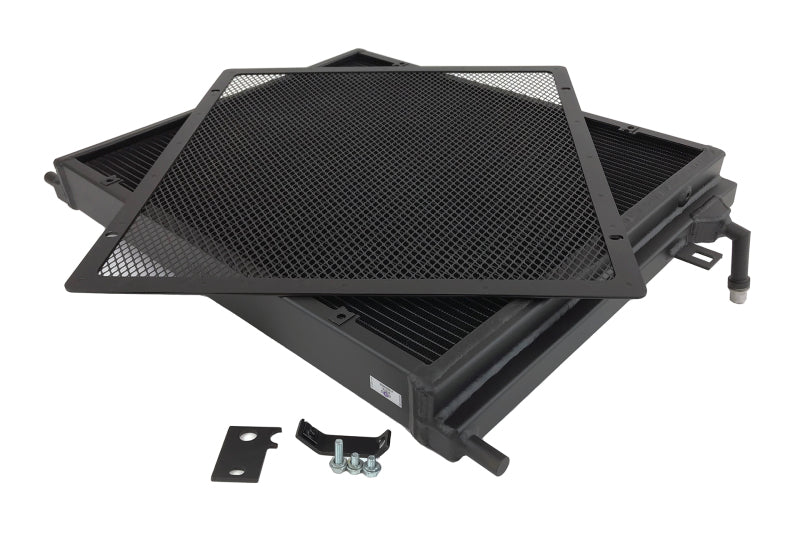

• Included Detachable Rock Guard


• Triple-Pass Flow Design


• Semi-Gloss Black Finish

Fitment:
2014 BMW 320i
2015 BMW 320i
2016 BMW 320i
2016 BMW 330e
2016 BMW 340i
2016 BMW 340i xDrive
2017 BMW 230i
2017 BMW 230i xDrive
2017 BMW 320i
2017 BMW 330e
2017 BMW 330i
2017 BMW 330i GT xDrive
2017 BMW 330i xDrive
2017 BMW 340i
2017 BMW 340i GT xDrive
2017 BMW 340i xDrive
2017 BMW 430i
2017 BMW 430i xDrive
2017 BMW 430i xDrive Gran Coupe
2017 BMW 440i
2017 BMW 440i Gran Coupe
2017 BMW 440i xDrive
2017 BMW 440i xDrive Gran Coupe
2017 BMW M240i
2017 BMW M240i xDrive
2018 BMW 230i
2018 BMW 230i xDrive
2018 BMW 320i
2018 BMW 330e
2018 BMW 330i
2018 BMW 330i GT xDrive
2018 BMW 330i xDrive
2018 BMW 340i
2018 BMW 340i GT xDrive
2018 BMW 340i xDrive
2018 BMW 430i
2018 BMW 430i xDrive
2018 BMW 430i xDrive Gran Coupe
2018 BMW 440i
2018 BMW 440i Gran Coupe
2018 BMW 440i xDrive
2018 BMW 440i xDrive Gran Coupe
2018 BMW M240i
2018 BMW M240i xDrive
2019 BMW 230i
2019 BMW 230i xDrive
2019 BMW 330i xDrive
2019 BMW 340i GT xDrive
2019 BMW 430i
2019 BMW 430i xDrive
2019 BMW 430i xDrive Gran Coupe
2019 BMW 440i
2019 BMW 440i Gran Coupe
2019 BMW 440i xDrive
2019 BMW 440i xDrive Gran Coupe
2019 BMW M240i
2019 BMW M240i xDrive
2020 BMW 230i
2020 BMW 230i xDrive
2020 BMW 430i
2020 BMW 430i xDrive
2020 BMW 430i xDrive Gran Coupe
2020 BMW 440i
2020 BMW 440i Gran Coupe
2020 BMW 440i xDrive
2020 BMW 440i xDrive Gran Coupe
2020 BMW M240i
2020 BMW M240i xDrive
2021 BMW 230i
2021 BMW 230i xDrive
2021 BMW M240i
2021 BMW M240i xDrive

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: N
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
