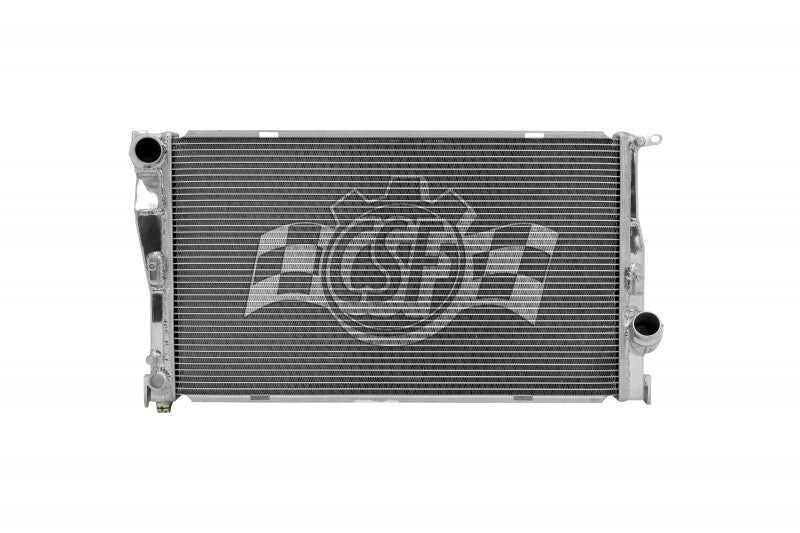

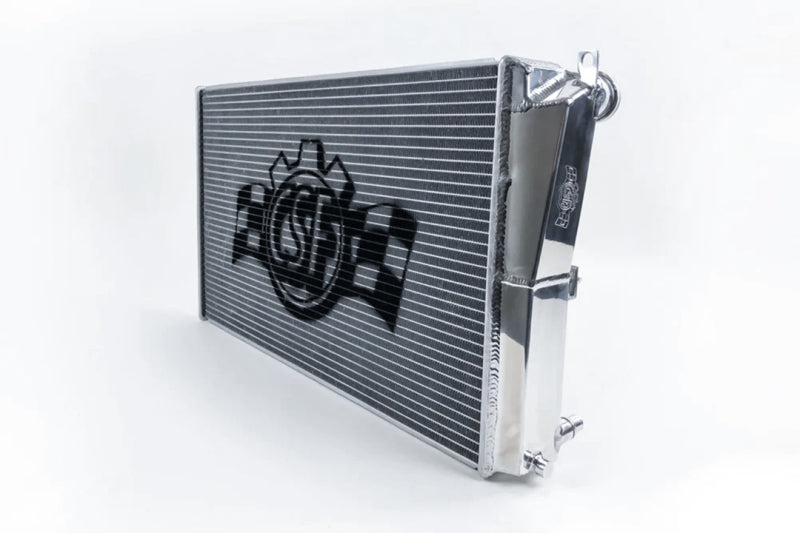

CSF BMW 2 Series (F22/F23) / BMW 3 Series (F30/F31/F34) / BMW 4 Series (F32/F33/F36) A/T Radiator

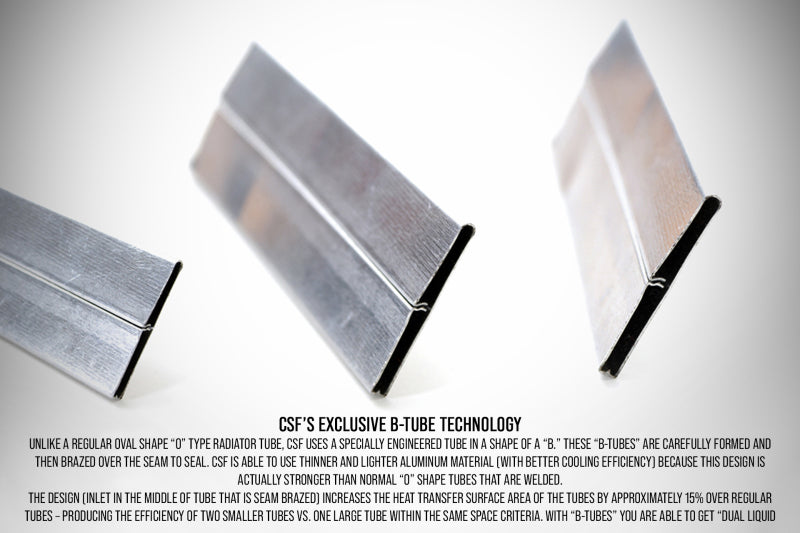

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your F2X/F3X running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.
CSF manufactures the most advanced and efficient radiator in the industry for your F2X/F3X. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.
The CSF #7081 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

• "Drop-in Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including "Quick-Connect" Hoses, AC Condenser, Mounting Brackets and Fan Shroud

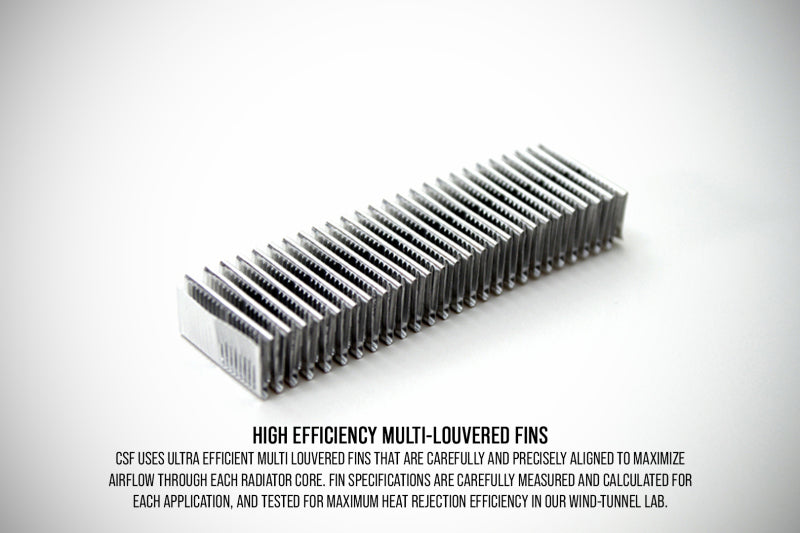

• Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact

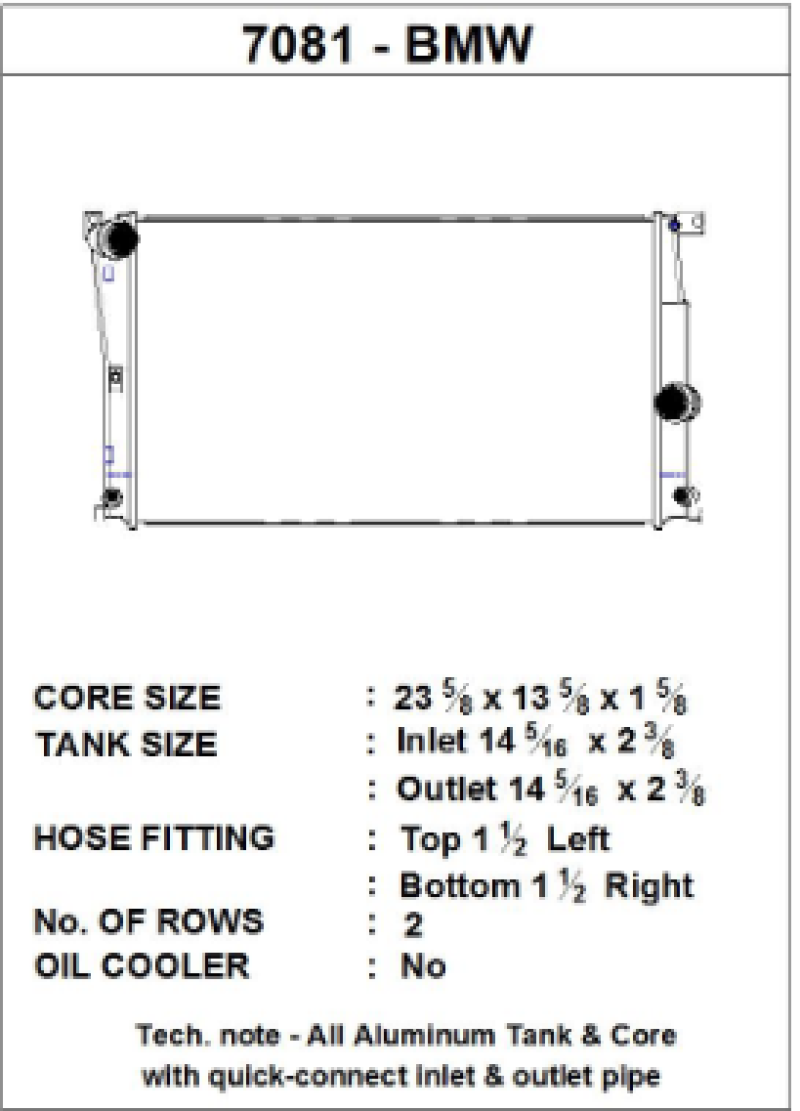

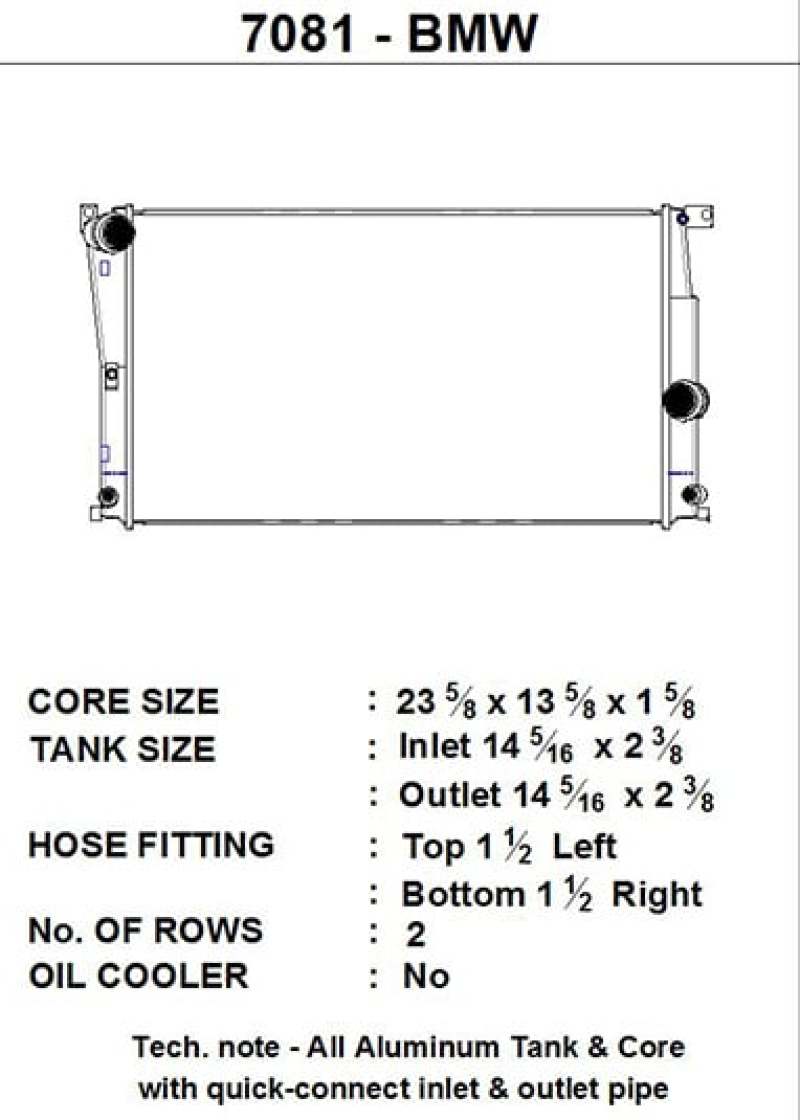

• 2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology


• CNC Machined Brackets and Fittings for Superb Fit and Durability


• CNC Machined "Quick-Connect" Inlet/Outlet Connections


• Replaces OEM Part Number: 17117618807


• All-Aluminum Race Style Drain Plug


• Smooth Satin Finish

Fitment:
2011 BMW 328i
2011 BMW 328i xDrive
2011 BMW 335i
2011 BMW 335i xDrive
2012 BMW 328i
2012 BMW 328i xDrive
2012 BMW 335i
2012 BMW 335i xDrive
2013 BMW 320i
2013 BMW 320i xDrive
2013 BMW 328i
2013 BMW 328i xDrive
2013 BMW 335i
2013 BMW 335i xDrive
2014 BMW 228i
2014 BMW 320i
2014 BMW 320i xDrive
2014 BMW 328i
2014 BMW 328i xDrive
2014 BMW 335i
2014 BMW 335i GT xDrive
2014 BMW 335i xDrive
2014 BMW 428i
2014 BMW 428i xDrive
2014 BMW 435i
2014 BMW 435i xDrive
2014 BMW i3
2014 BMW M235i
2015 BMW 228i
2015 BMW 228i xDrive
2015 BMW 320i
2015 BMW 320i xDrive
2015 BMW 328i
2015 BMW 328i xDrive
2015 BMW 335i
2015 BMW 335i GT xDrive
2015 BMW 335i xDrive
2015 BMW 428i
2015 BMW 428i Gran Coupe
2015 BMW 428i xDrive
2015 BMW 428i xDrive Gran Coupe
2015 BMW 435i
2015 BMW 435i Gran Coupe
2015 BMW 435i xDrive
2015 BMW 435i xDrive Gran Coupe
2015 BMW i3
2015 BMW M235i
2015 BMW M235i xDrive
2016 BMW 228i
2016 BMW 228i xDrive
2016 BMW 320i
2016 BMW 320i xDrive
2016 BMW 328i
2016 BMW 328i xDrive
2016 BMW 335i GT xDrive
2016 BMW 428i
2016 BMW 428i Gran Coupe
2016 BMW 428i xDrive
2016 BMW 428i xDrive Gran Coupe
2016 BMW 435i
2016 BMW 435i Gran Coupe
2016 BMW 435i xDrive
2016 BMW 435i xDrive Gran Coupe
2016 BMW i3
2016 BMW M235i
2016 BMW M235i xDrive
2017 BMW 320i
2017 BMW 320i xDrive
2017 BMW i3
2018 BMW 320i
2018 BMW 320i xDrive
