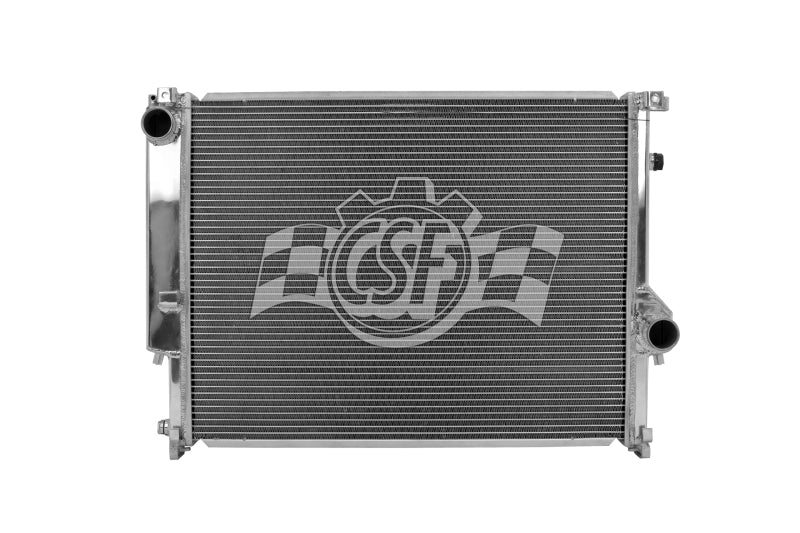

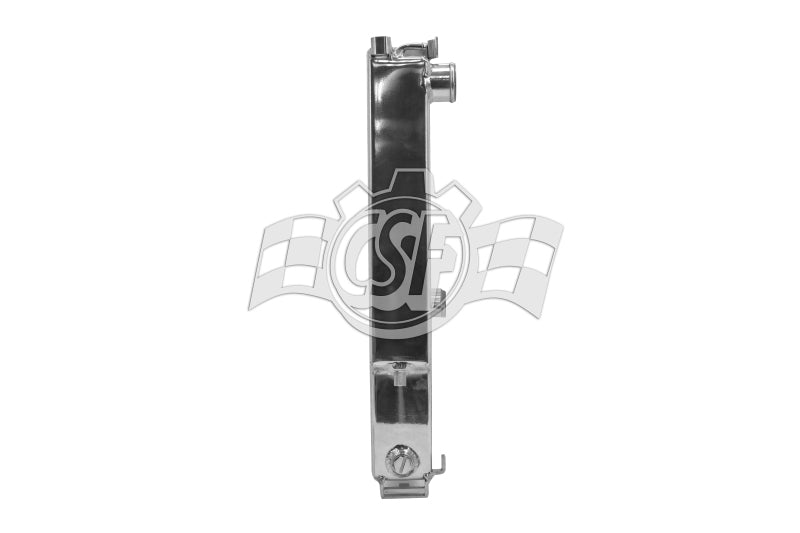

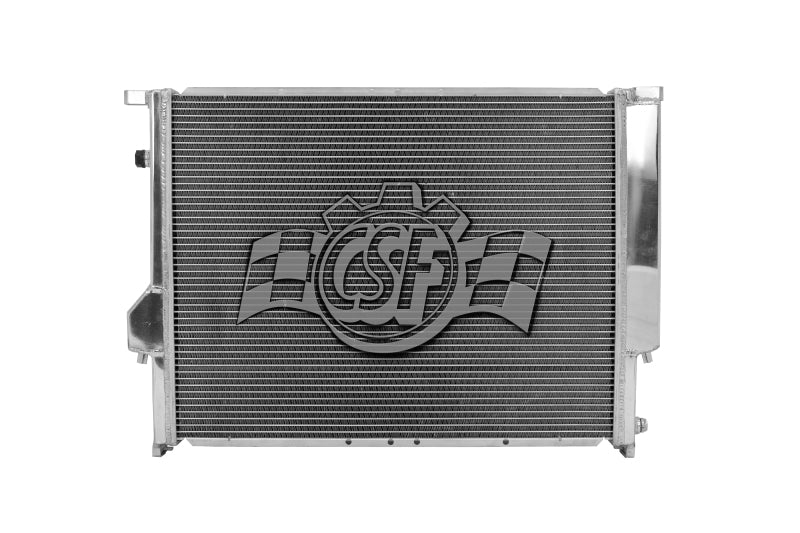

CSF 93-99 BMW M3 (E36) / 92-95 BMW 320i / 92-98 BMW 323 / 92-98 BMW 325 / 94-98 BMW 328 Radiator

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your E36 M3/3-Series running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.
CSF manufactures the most advanced and efficient radiator in the industry for your E36 M3/3-Series. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.
The CSF #3054 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

• "Drop-in Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including "Quick Connect" Hoses, AC Condenser, Mounting Brackets and Fan Shroud


• Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact

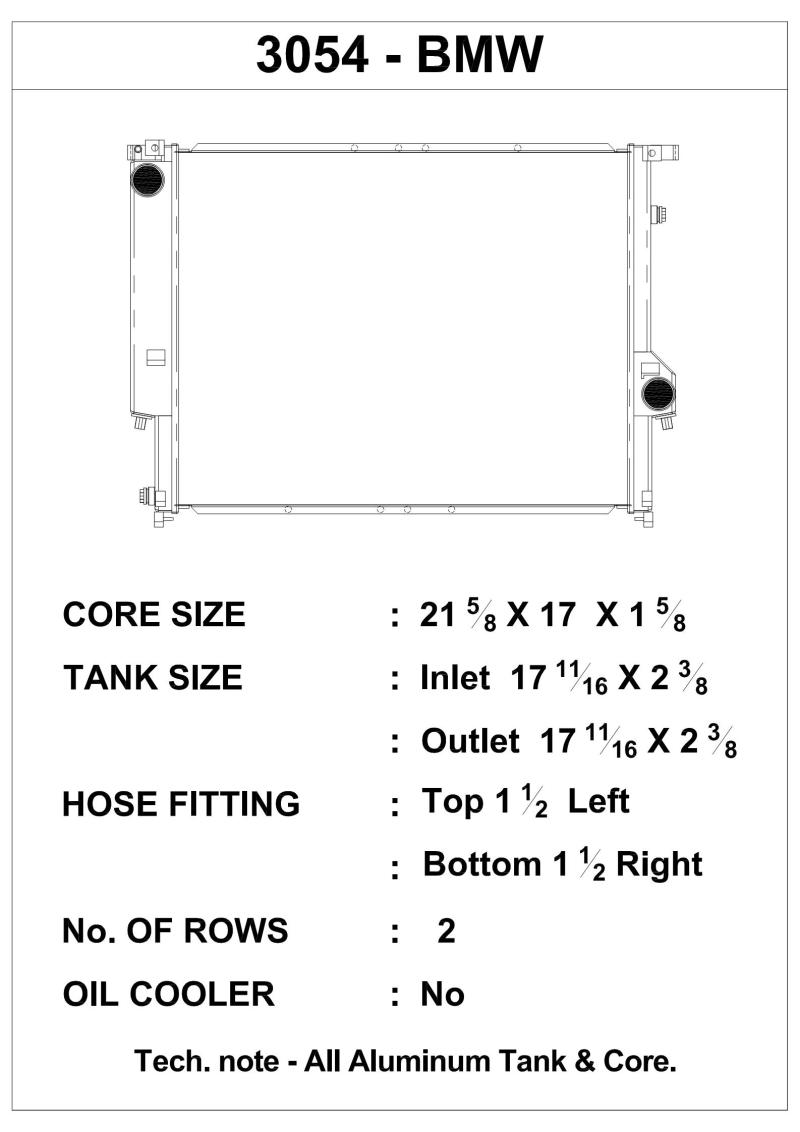

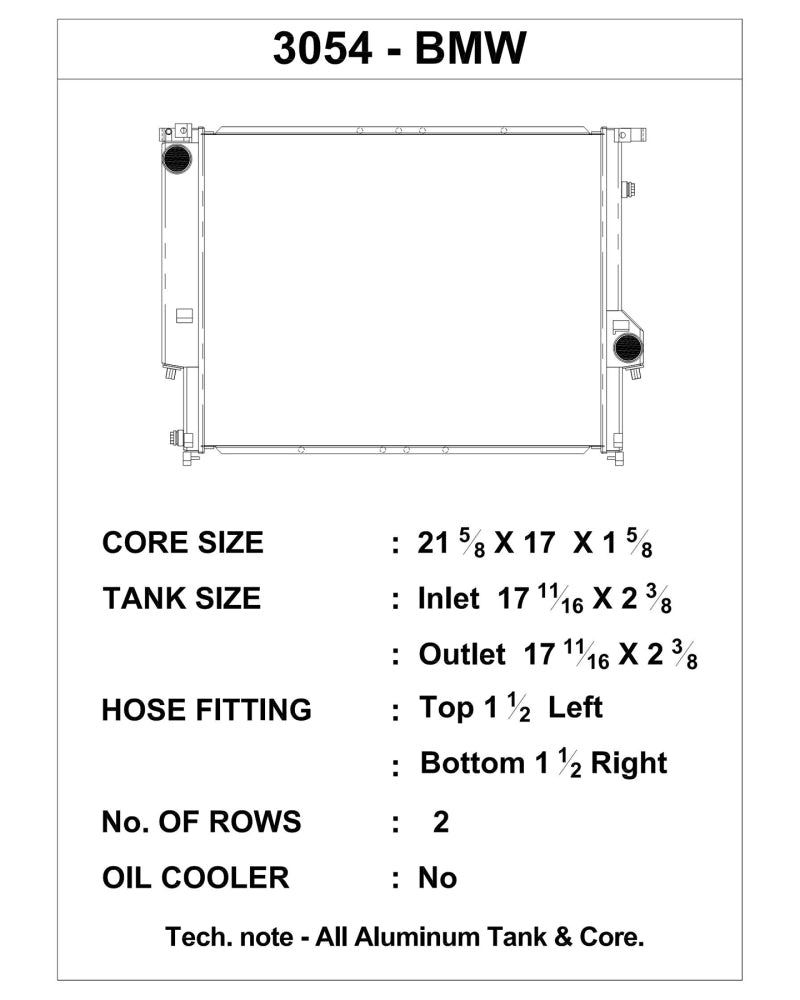

• 2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology


• CNC Machined Brackets and Fittings for Superb Fit and Durability

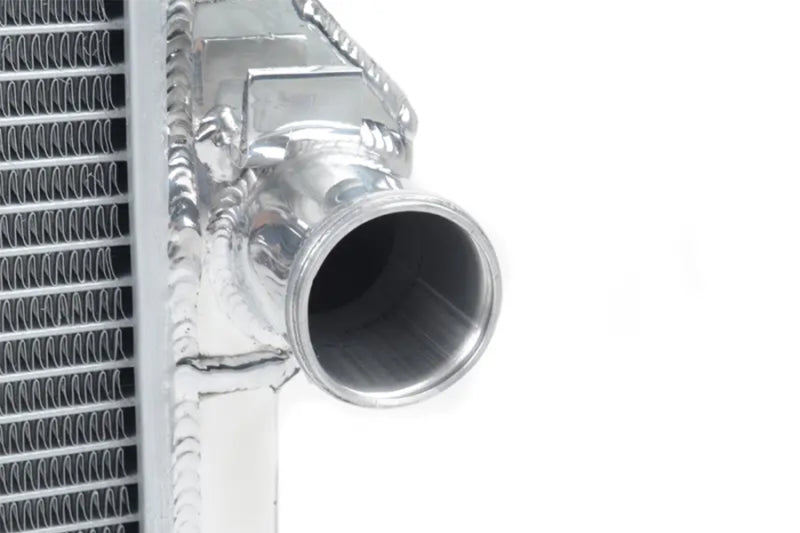

• CNC Machined "Quick-Connect" Inlet/Outlet Connections


• All-Aluminum Race Style Drain Plug


• Smooth Satin Finish

Fitment:
1988 BMW 325i
1988 BMW 325is
1988 BMW 325iX
1989 BMW 325i
1989 BMW 325is
1989 BMW 325iX
1990 BMW 325i
1990 BMW 325is
1990 BMW 325iX
1991 BMW 325i
1991 BMW 325is
1991 BMW 325iX
1992 BMW 325i
1992 BMW 325is
1993 BMW 325i
1993 BMW 325is
1994 BMW 325i
1994 BMW 325is
1995 BMW 325i
1995 BMW 325is
1995 BMW M3
1996 BMW 328i
1996 BMW 328is
1996 BMW M3
1997 BMW 328i
1997 BMW 328is
1997 BMW M3
1998 BMW 323i
1998 BMW 323is
1998 BMW 328i
1998 BMW 328is
1998 BMW M3
1999 BMW 323is
1999 BMW 328is
1999 BMW M3

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: N
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
