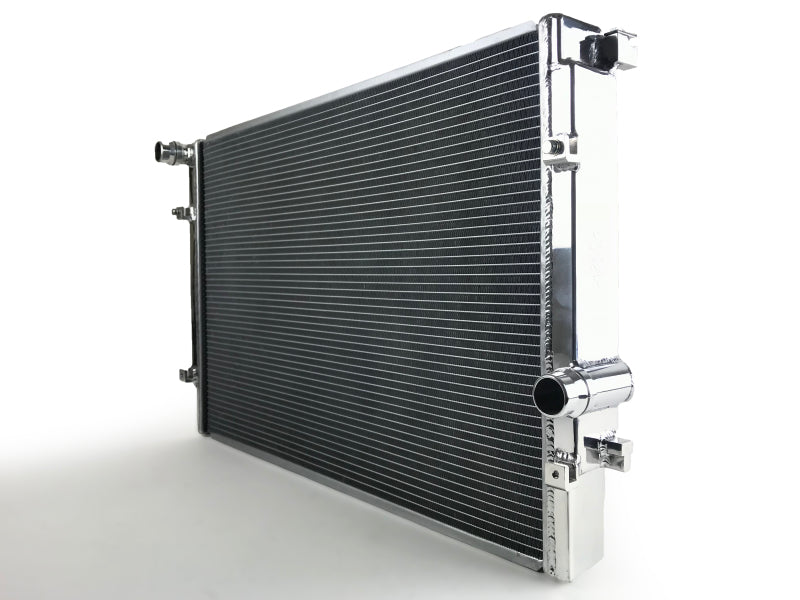

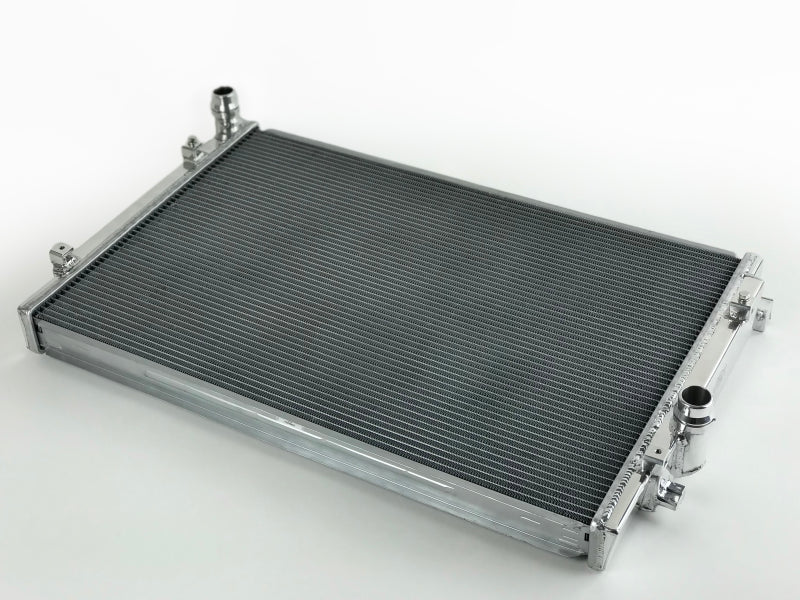

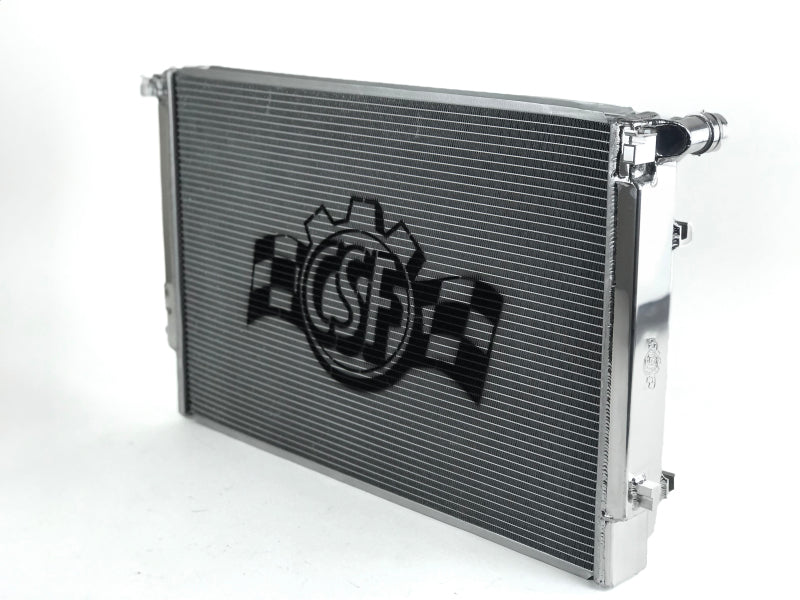

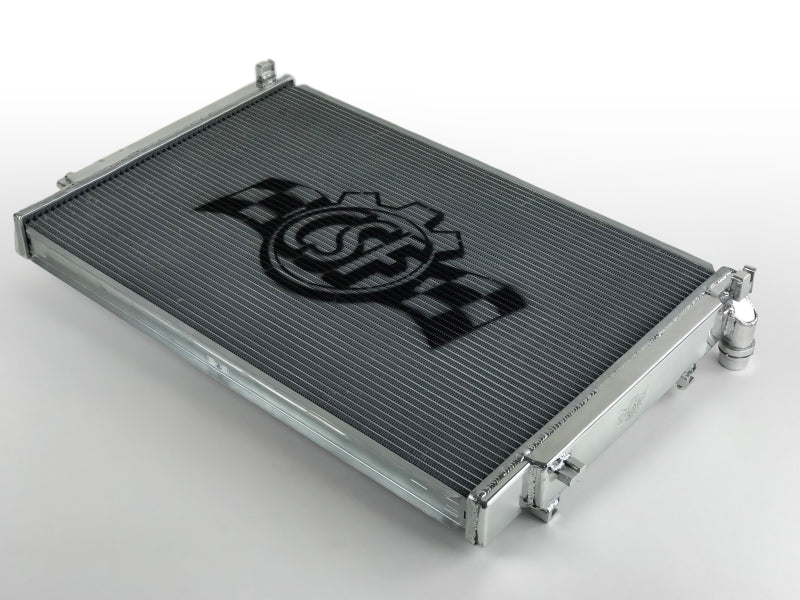

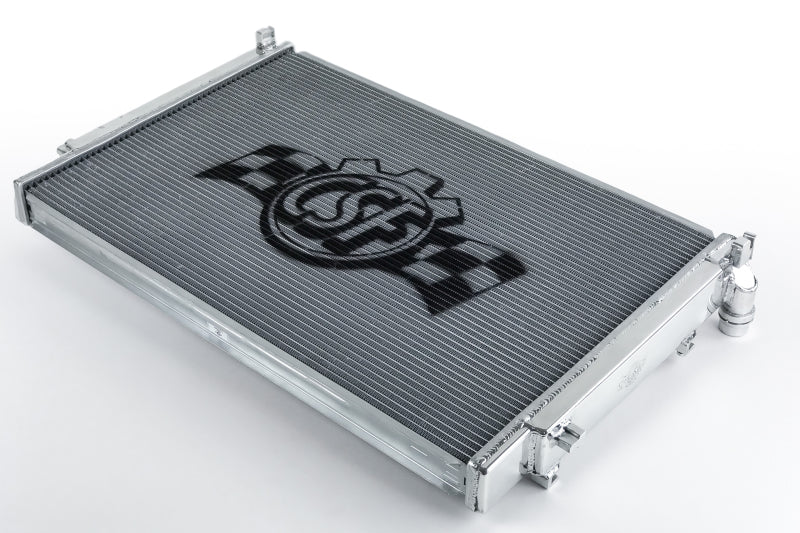

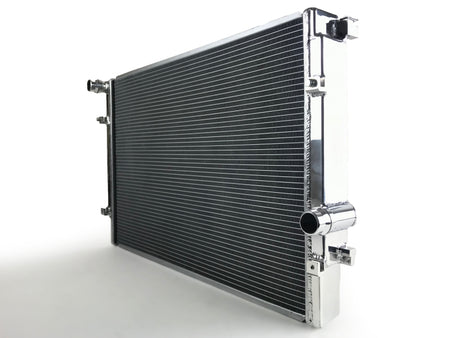

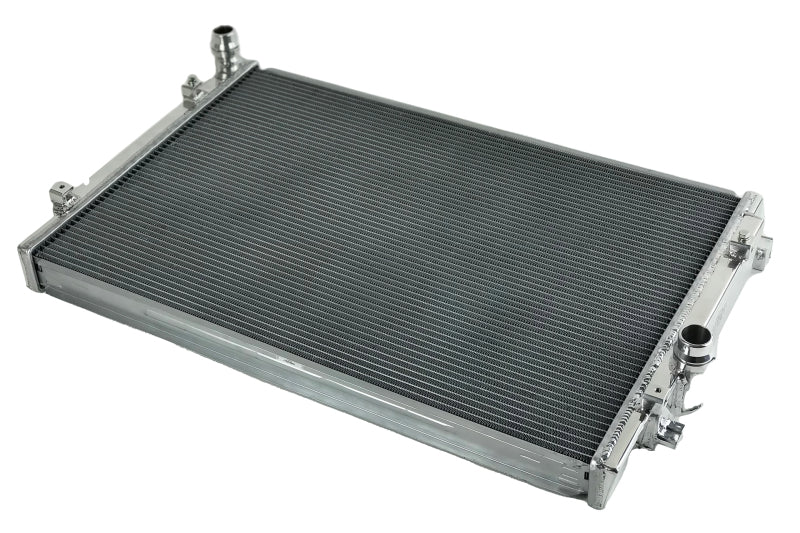

CSF 2015+ Volkswagen Golf/GTI (VAG MQB) Triple-Pass Radiator

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your Audi/VW running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. The Triple-Pass Flow Structure allows the coolant to flow across the core of the radiator three times before exiting for lowest outlet temperatures possible. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.
CSF manufactures the most advanced and efficient radiator in the industry for your Audi/VW. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.
The CSF #7084 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

• "Drop-in Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including "Quick Connect" Hoses, AC Condenser, Mounting Brackets and Fan Shroud


• Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact


• 2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology


• CNC Machined Brackets and Fittings for Superb Fit and Durability

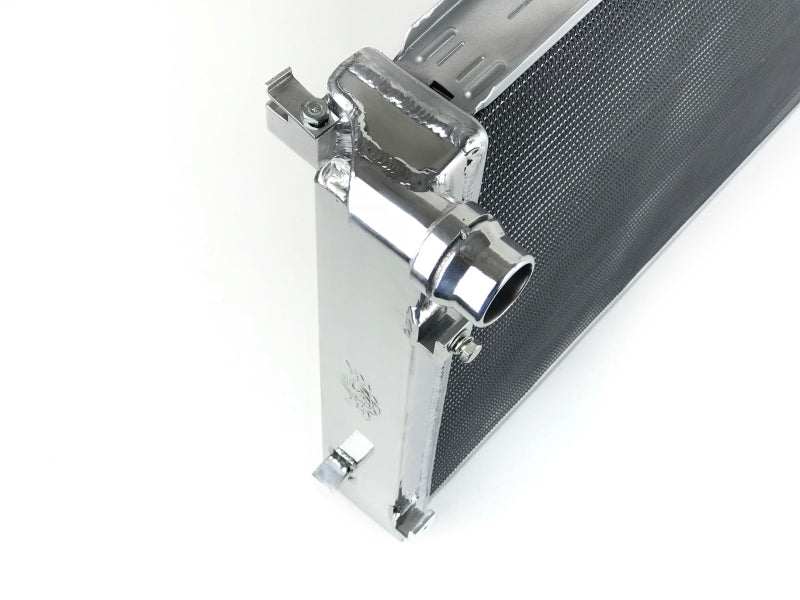

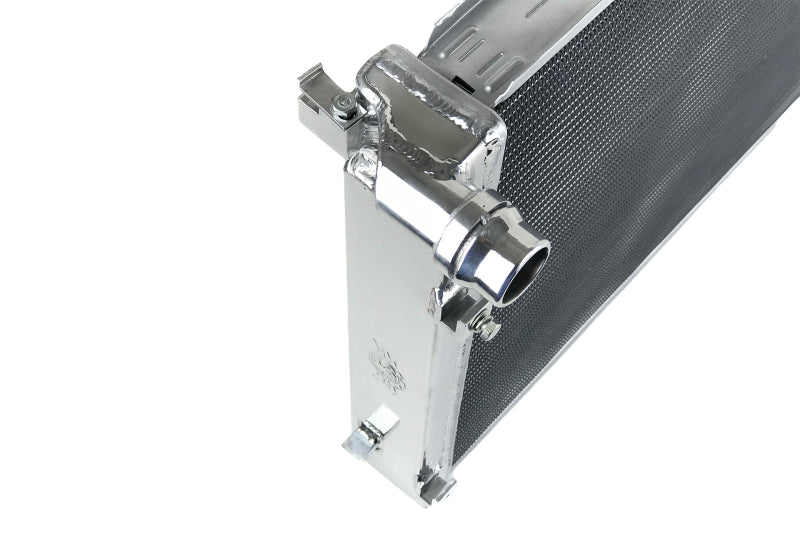

• CNC Machined "Quick-Connect" Inlet/Outlet Connections


• All-Aluminum Race Style Drain Plug


• Smooth Satin Finish

Fitment:
2012 Volkswagen GTI
2014 Volkswagen GTI
2015 Audi A3
2015 Audi A3 Quattro
2015 Audi S3
2015 Volkswagen Golf
2015 Volkswagen Golf R
2015 Volkswagen Golf SportWagen
2015 Volkswagen GTI
2016 Audi A3
2016 Audi A3 Quattro
2016 Audi S3
2016 Audi TT Quattro
2016 Audi TTS Quattro
2016 Volkswagen Golf
2016 Volkswagen Golf R
2016 Volkswagen Golf SportWagen
2016 Volkswagen GTI
2017 Audi A3
2017 Audi A3 Quattro
2017 Audi S3
2017 Audi TT Quattro
2017 Audi TTS Quattro
2017 Volkswagen Golf
2017 Volkswagen Golf Alltrack
2017 Volkswagen Golf R
2017 Volkswagen Golf SportWagen
2017 Volkswagen GTI
2018 Audi A3
2018 Audi A3 Quattro
2018 Audi S3
2018 Audi TT Quattro
2018 Audi TTS Quattro
2018 Volkswagen Golf
2018 Volkswagen Golf Alltrack
2018 Volkswagen Golf R
2018 Volkswagen Golf SportWagen
2018 Volkswagen GTI
2018 Volkswagen Tiguan
2019 Audi A3
2019 Audi A3 Quattro
2019 Audi Q3
2019 Audi S3
2019 Audi TT Quattro
2019 Audi TTS Quattro
2019 Volkswagen Arteon
2019 Volkswagen Golf Alltrack
2019 Volkswagen Golf R
2019 Volkswagen Golf SportWagen
2019 Volkswagen GTI
2019 Volkswagen Jetta
2019 Volkswagen Tiguan
2020 Audi A3
2020 Audi A3 Quattro
2020 Audi Q3
2020 Audi S3
2020 Audi TT Quattro
2020 Audi TTS Quattro
2020 Volkswagen Arteon
2020 Volkswagen GTI
2020 Volkswagen Jetta
2020 Volkswagen Tiguan
2021 Audi Q3
2021 Audi TT Quattro
2021 Audi TTS Quattro
2021 Volkswagen Arteon
2021 Volkswagen GTI
2021 Volkswagen Jetta
2022 Audi Q3

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: N
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
