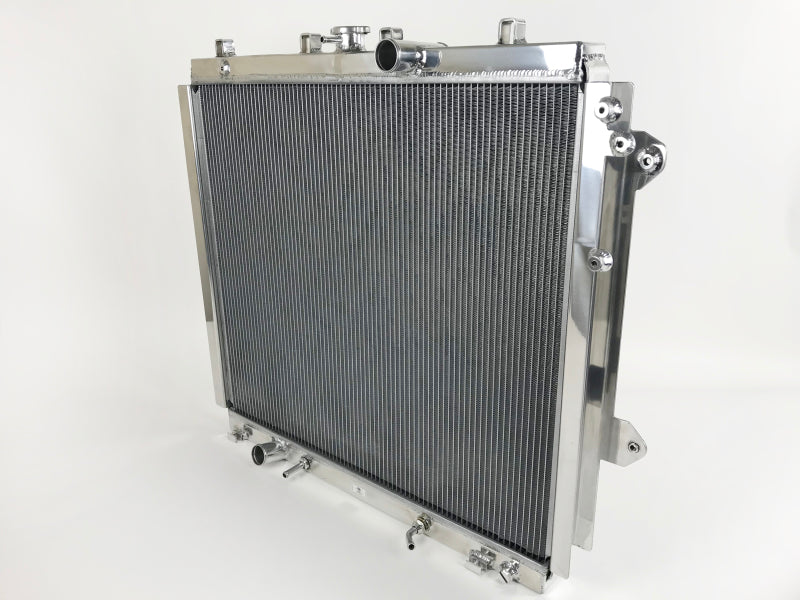

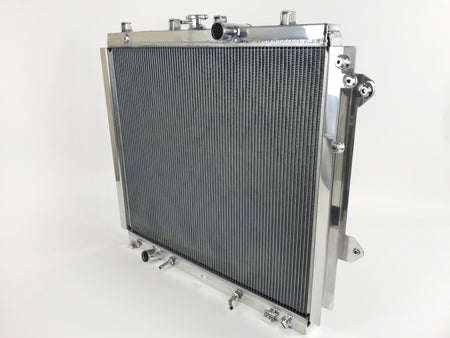

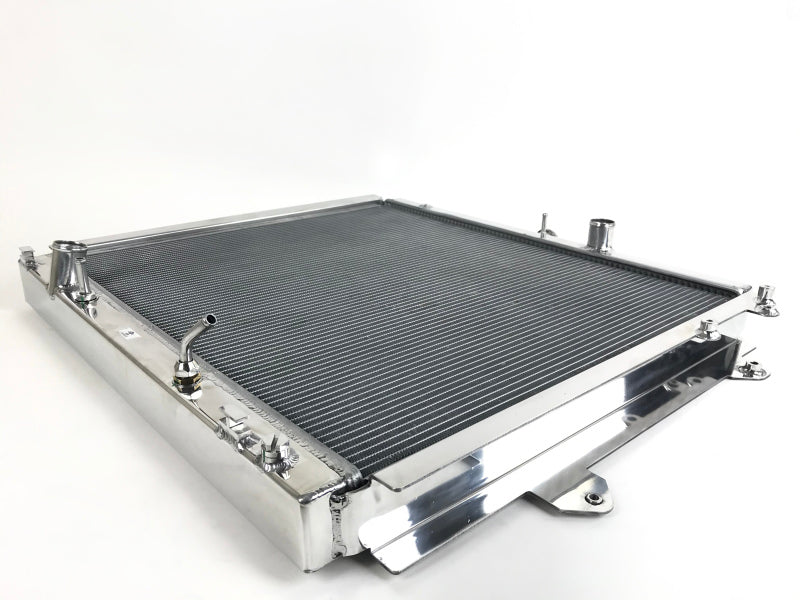

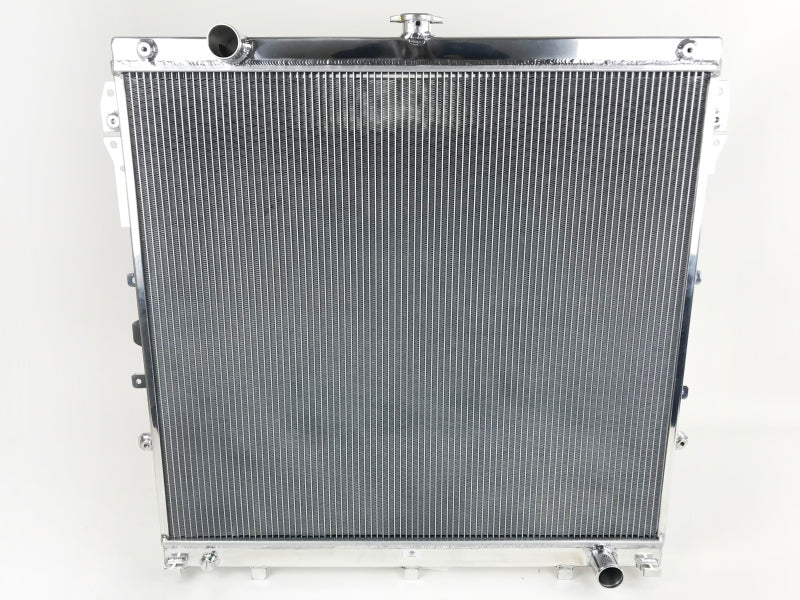

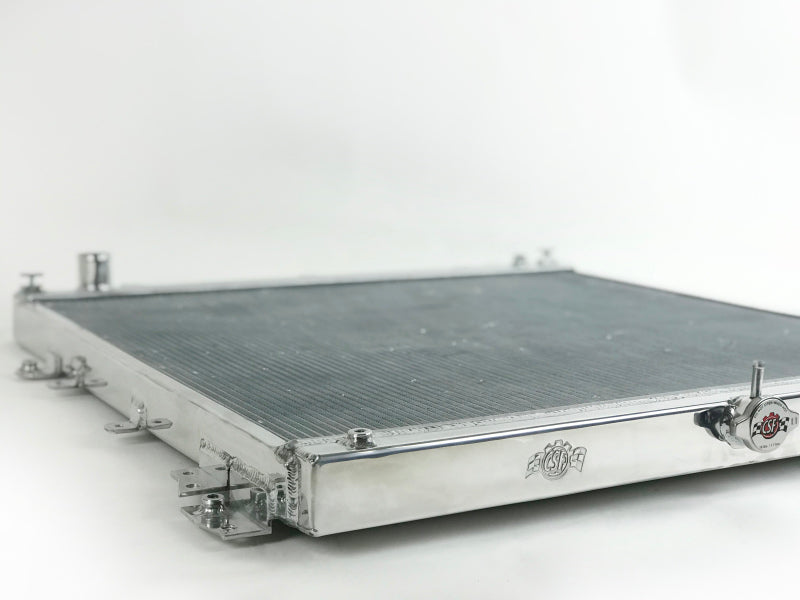

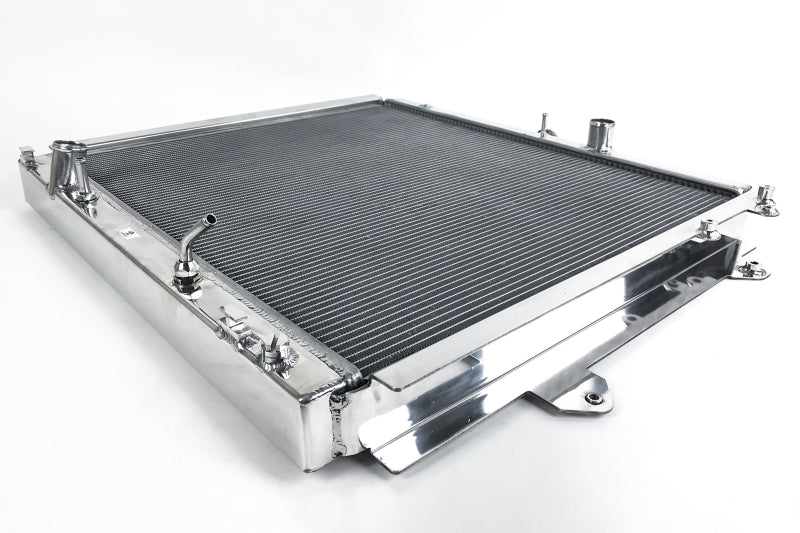

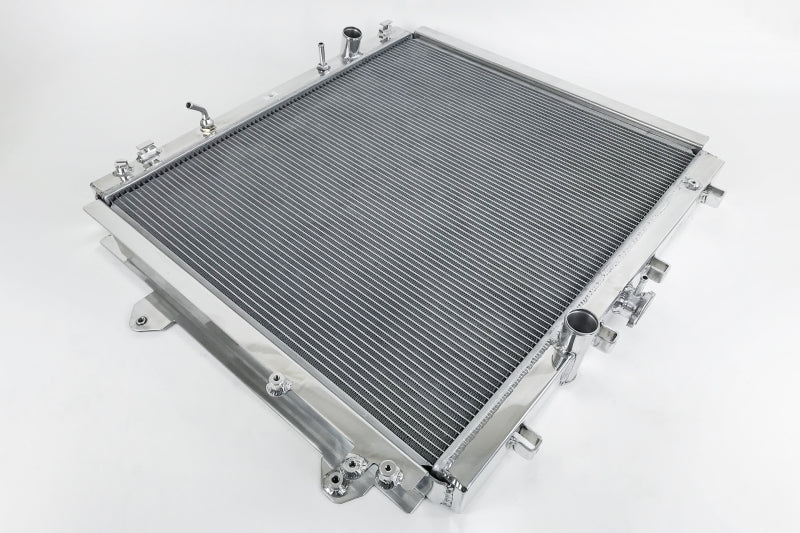

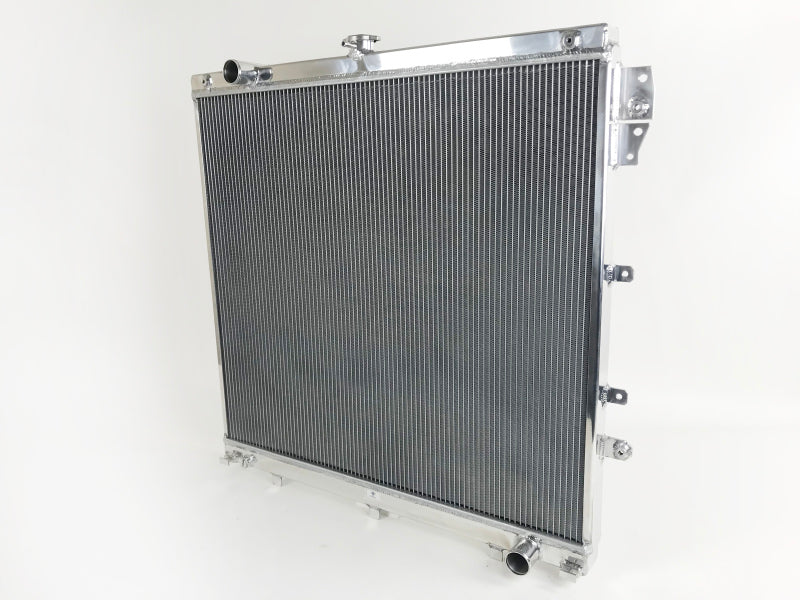

CSF 10-19 Toyota 4Runner High Performance All-Aluminum Radiator

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your 4Runner running at its best, a CSF Heavy-Duty/High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on and off road, a heavy-duty performance radiator is a must-have for off-roaders, overlanders, and adventurers. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.
CSF manufactures the most advanced and efficient radiator in the industry for your 4Runner. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.
The CSF #7085 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

• Core Features Ultra-Efficient, 6.5mm Tall Fins with a Multi-Louvered Design for Maximum Surface Area Contact

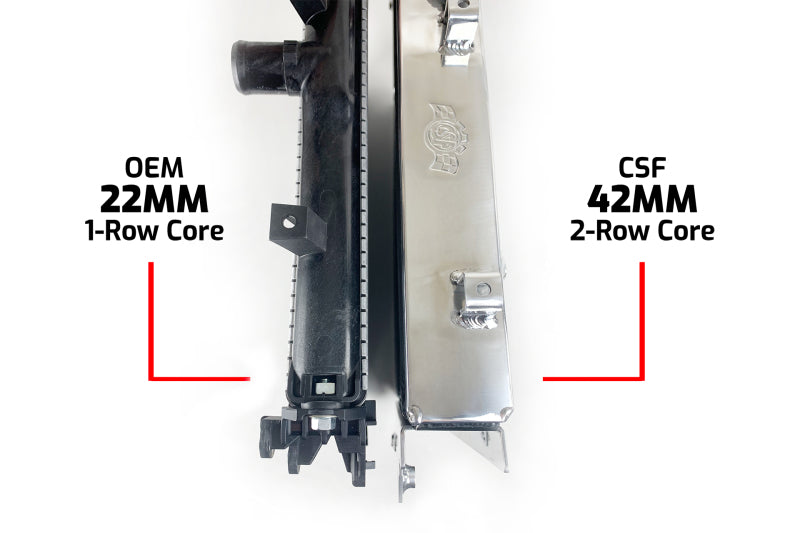

• 2 Row, 42mm Ultra High-Performance Core Featuring CSF's Exclusive B-Tube Technology


• Upgraded 4-Plate Automatic Transmission Cooler Built Into Bottom End Tank

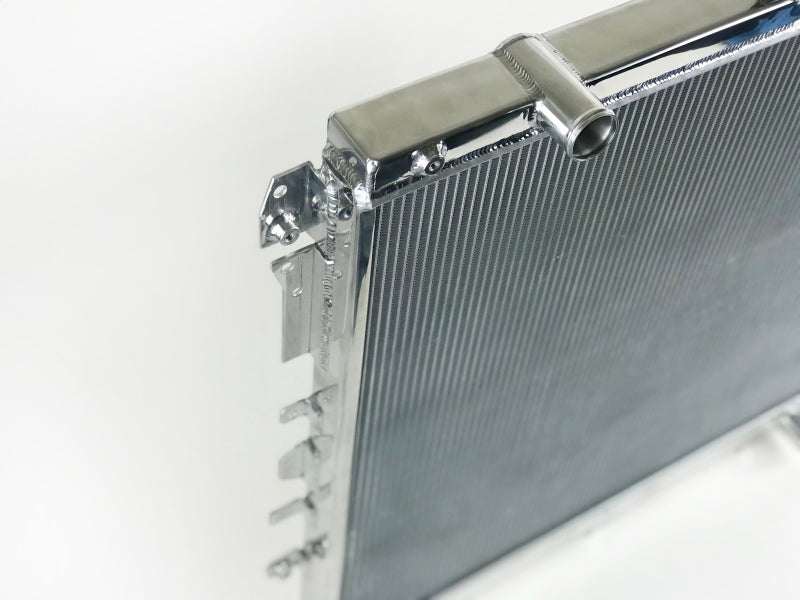

• CNC Machined Mounting Brackets for Superb Fit and Durability


• True "Drop-In-Fit" Requires No Modifications to Install


• 100% All Aluminum TIG-Welded Construction


• Individually Leak and Pressure Tested


• 1 Hour "Mirror Finish" Hand Polish


• 2 Year Limited Warranty

Fitment:
2010 Toyota 4Runner
2011 Toyota 4Runner
2012 Toyota 4Runner
2013 Toyota 4Runner
2014 Toyota 4Runner
2015 Toyota 4Runner
2016 Toyota 4Runner
2017 Toyota 4Runner
2018 Toyota 4Runner
2019 Toyota 4Runner
2020 Toyota 4Runner
2021 Toyota 4Runner
2022 Toyota 4Runner

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: N
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
