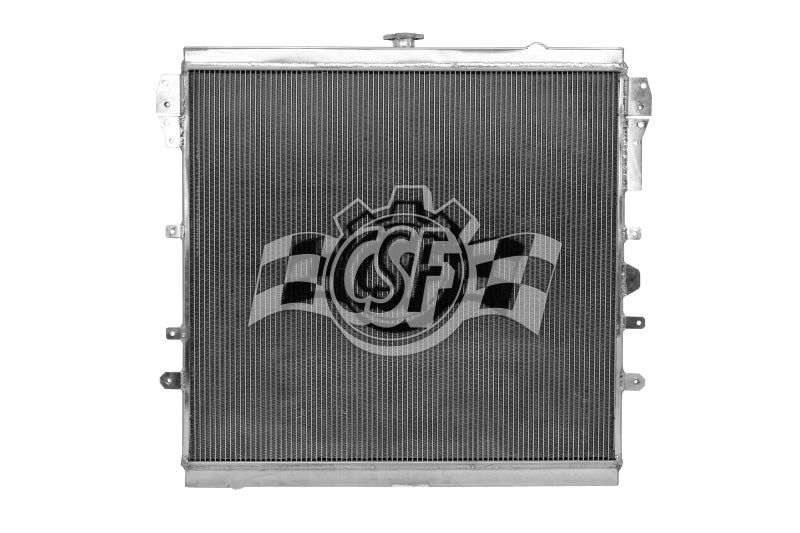

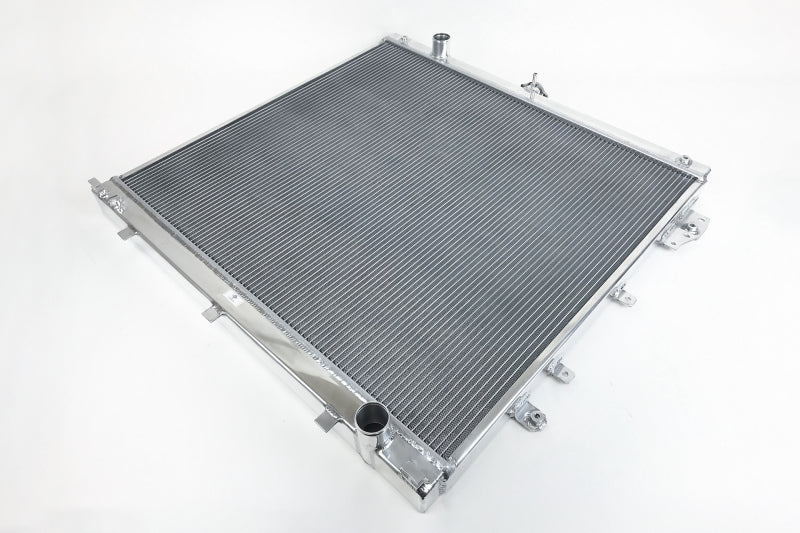

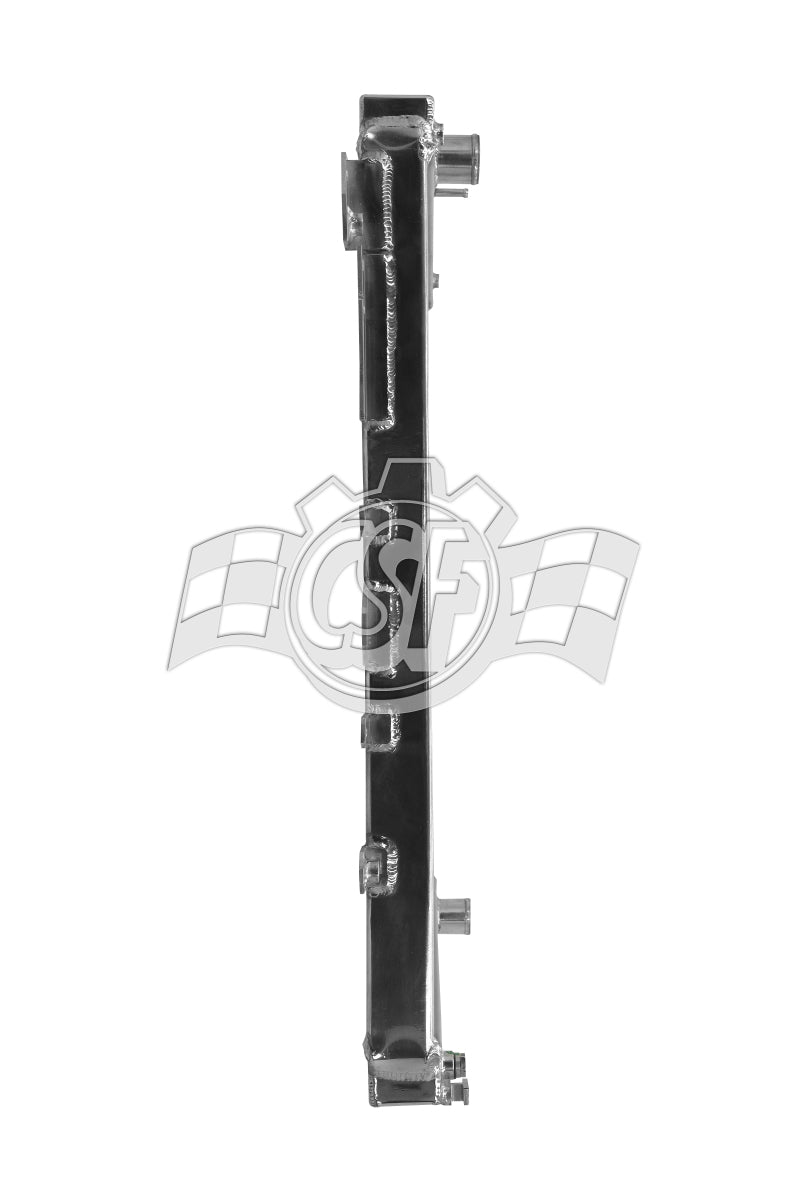

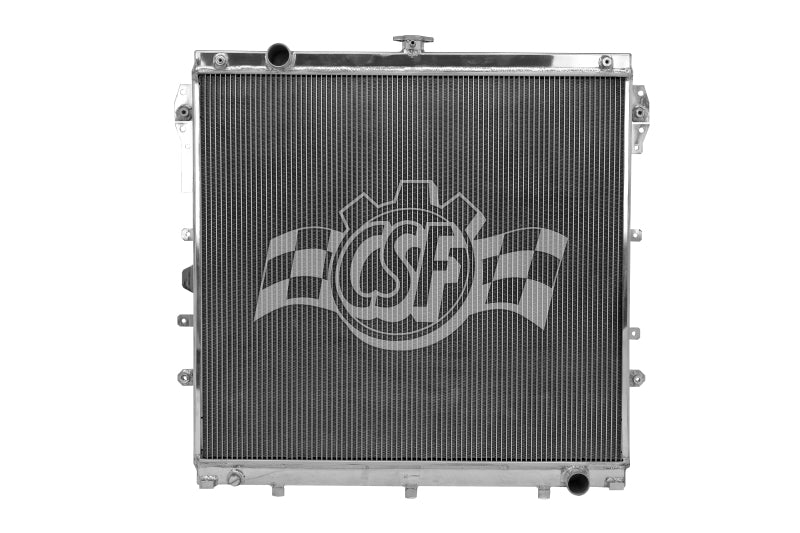

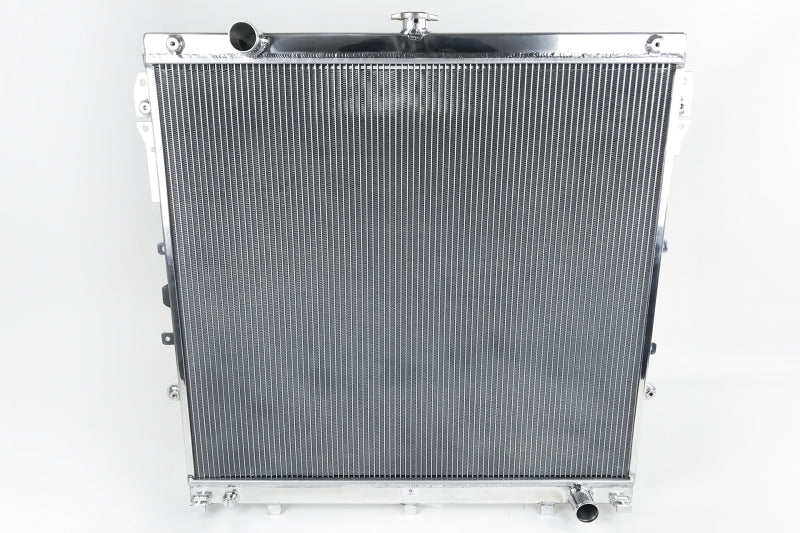

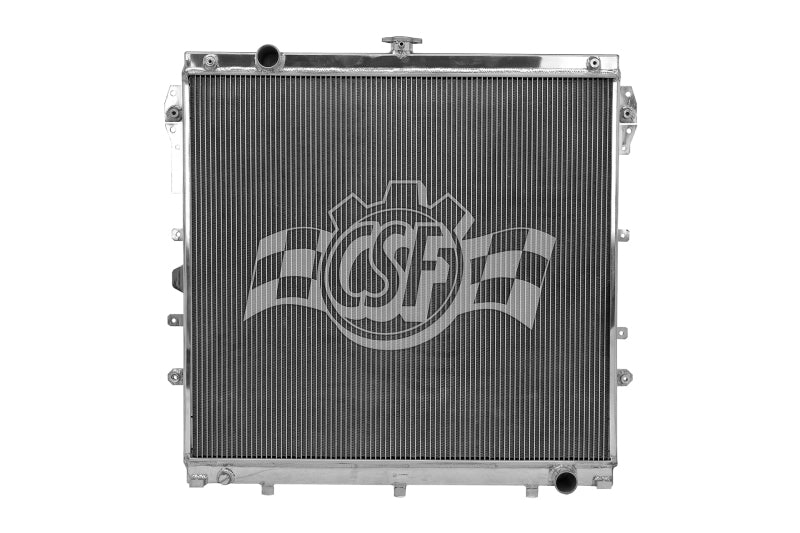

CSF 07-19 Toyota Tundra 5.7L Radiator

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your Tundra/Sequoia running at its best, a CSF Heavy-Duty/High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on and off road, a heavy-duty performance radiator is a must-have for off-roaders, overlanders, and adventurers. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.
CSF manufactures the most advanced and efficient radiator in the industry for your Tundra/Sequoia. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

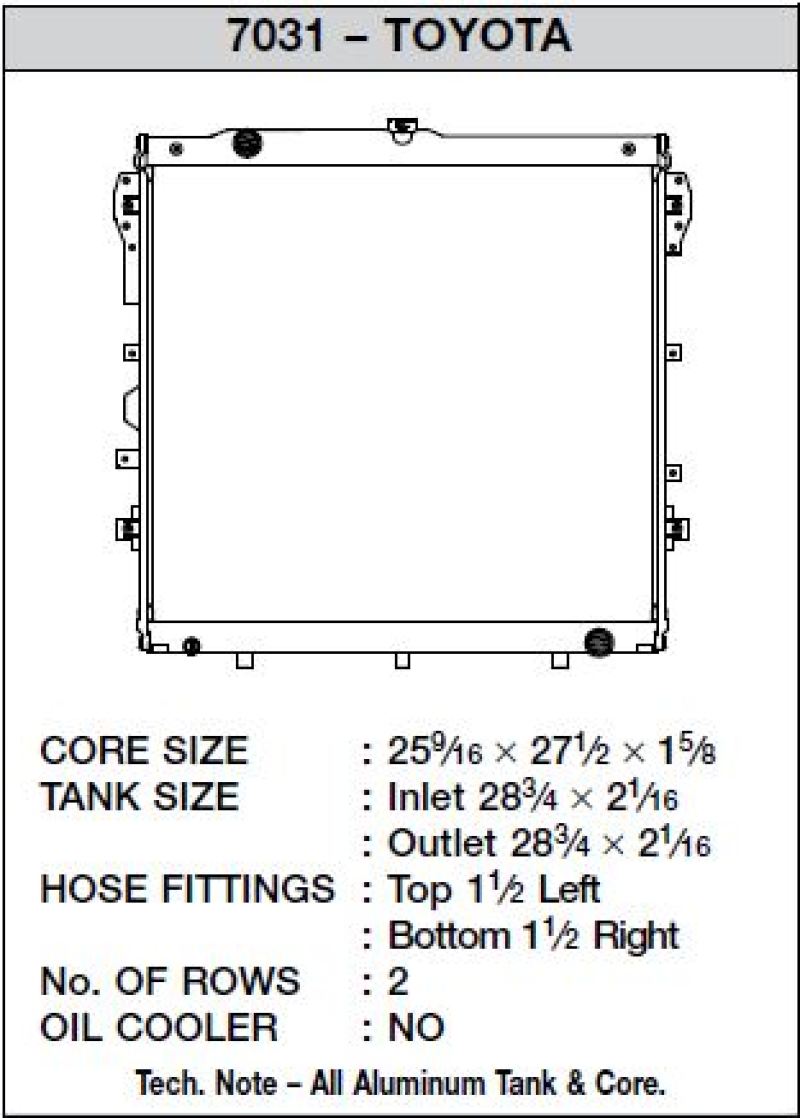

The CSF #7031 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

• "Drop-in Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including "Quick Connect" Hoses, AC Condenser, Mounting Brackets and Fan Shroud


• Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact


• 2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology


• CNC Machined Brackets and Fittings for Superb Fit and Durability


• CNC Machined "Quick-Connect" Inlet/Outlet Connections


• All-Aluminum Race Style Drain Plug


• 1-Hour "Mirror Finish" Hand Polish

Fitment:
2007 Toyota Tundra
2008 Toyota Sequoia
2008 Toyota Tundra
2009 Toyota Sequoia
2009 Toyota Tundra
2010 Toyota Sequoia
2010 Toyota Tundra
2011 Toyota Sequoia
2011 Toyota Tundra
2012 Toyota Sequoia
2012 Toyota Tundra
2013 Toyota Sequoia
2013 Toyota Tundra
2014 Toyota Sequoia
2014 Toyota Tundra
2015 Toyota Sequoia
2015 Toyota Tundra
2016 Toyota Sequoia
2016 Toyota Tundra
2017 Toyota Sequoia
2017 Toyota Tundra
2018 Toyota Sequoia
2018 Toyota Tundra
2019 Toyota Sequoia
2019 Toyota Tundra
2020 Toyota Sequoia
2020 Toyota Tundra
2021 Toyota Sequoia
2021 Toyota Tundra
2022 Toyota Sequoia

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: N
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
