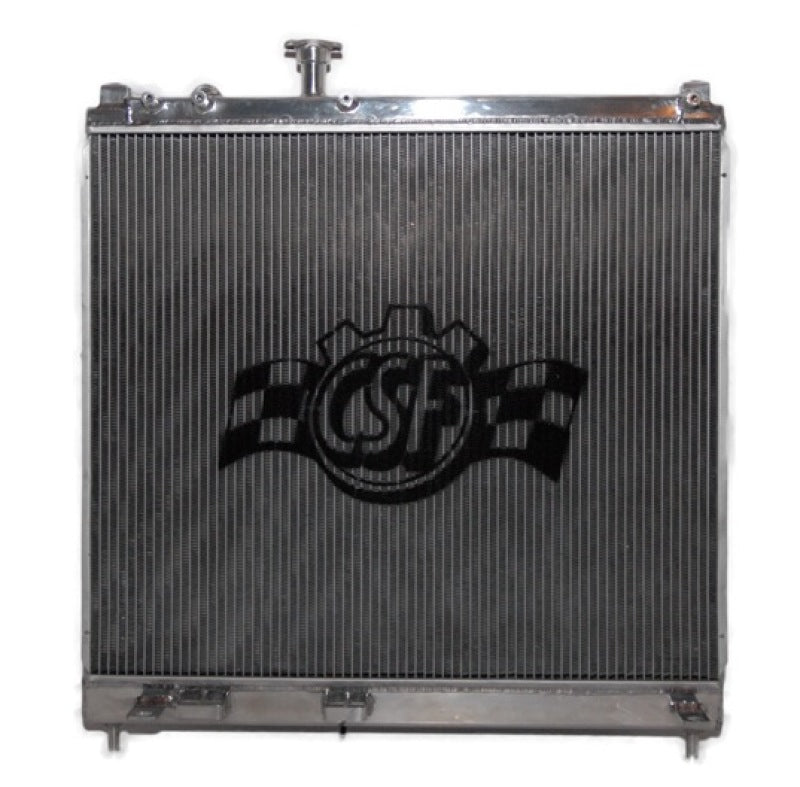

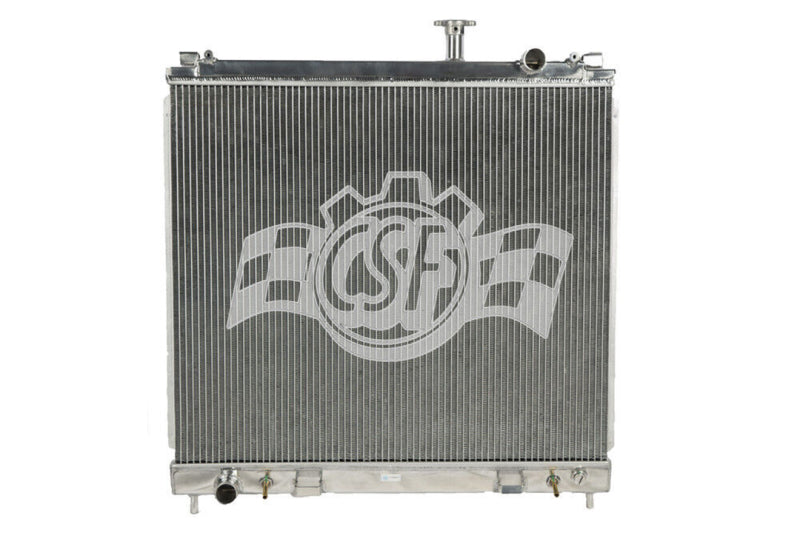

CSF 04-15 Nissan Titan Armada Radiator

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your Titan running at its best, a CSF Heavy-Duty/High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on and off road, a heavy-duty performance radiator is a must-have for off-roaders, overlanders, and adventurers. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.
CSF manufactures the most advanced and efficient radiator in the industry for your Titan. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

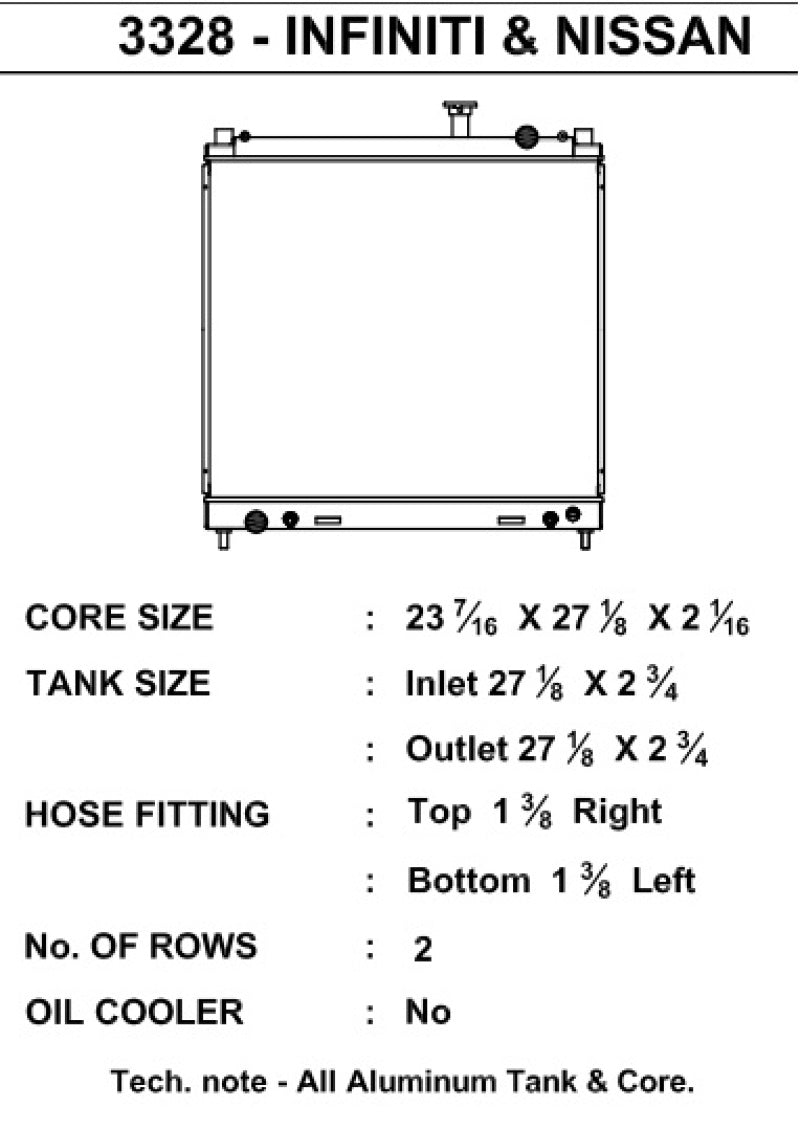

The CSF #3328 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

• "Drop-in Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including "Quick Connect" Hoses, AC Condenser, Mounting Brackets and Fan Shroud


• CNC Machined Brackets and Fittings for Superb Fit and Durability


• 100% Hydrostatic tested at 1.5 times operating pressure


• 100% OE style & OE specs for "Dop-in fit"


• All-Aluminum Race Style Drain Plug


• 1-Hour "Mirror Finish" Hand Polish

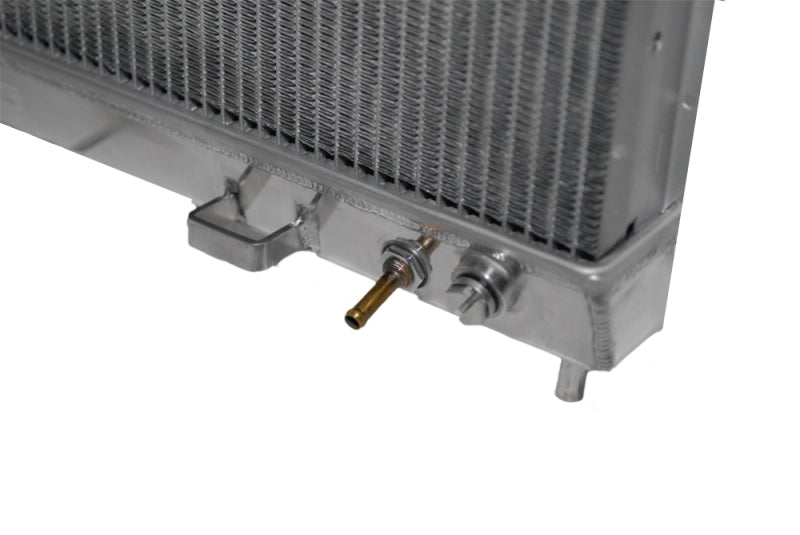

• Pre-installed & tested drain plug

Fitment:
2004 Infiniti QX56
2004 Nissan Pathfinder Armada
2004 Nissan Titan
2005 Infiniti QX56
2005 Nissan Armada
2005 Nissan Titan
2006 Infiniti QX56
2006 Nissan Armada
2006 Nissan Titan
2007 Infiniti QX56
2007 Nissan Armada
2007 Nissan Titan
2008 Infiniti QX56
2008 Nissan Armada
2008 Nissan Titan
2009 Infiniti QX56
2009 Nissan Armada
2009 Nissan Titan
2010 Infiniti QX56
2010 Nissan Armada
2010 Nissan Titan
2011 Infiniti QX56
2011 Nissan Armada
2011 Nissan Titan
2012 Infiniti QX56
2012 Nissan Armada
2012 Nissan Titan
2013 Infiniti QX56
2013 Nissan Armada
2013 Nissan Titan
2014 Nissan Armada
2014 Nissan Titan
2015 Nissan Armada
2015 Nissan Titan

Air Freight Prohibited: false
Not Carb Approved: false
Ltl Freight Required: false
Prop 65: N
Part Type: automotive
Epa: N/A
Carb Acknowledgement Required: false
Regular Stock: t
