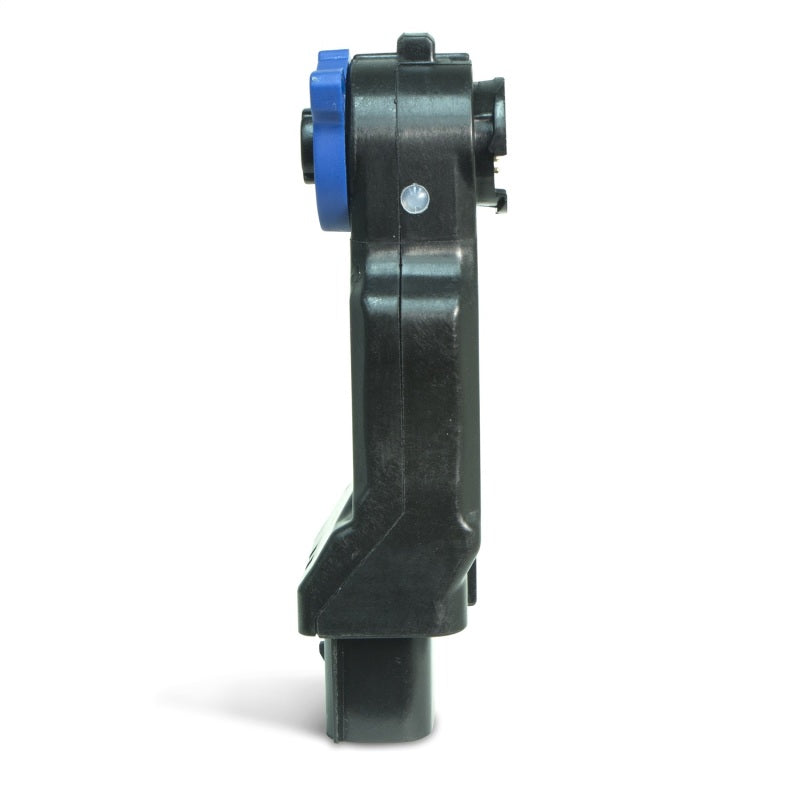

Banks Power iDash 1.8 DataMonster / Super Gauge 5 Ch Analog with Frequency Module System

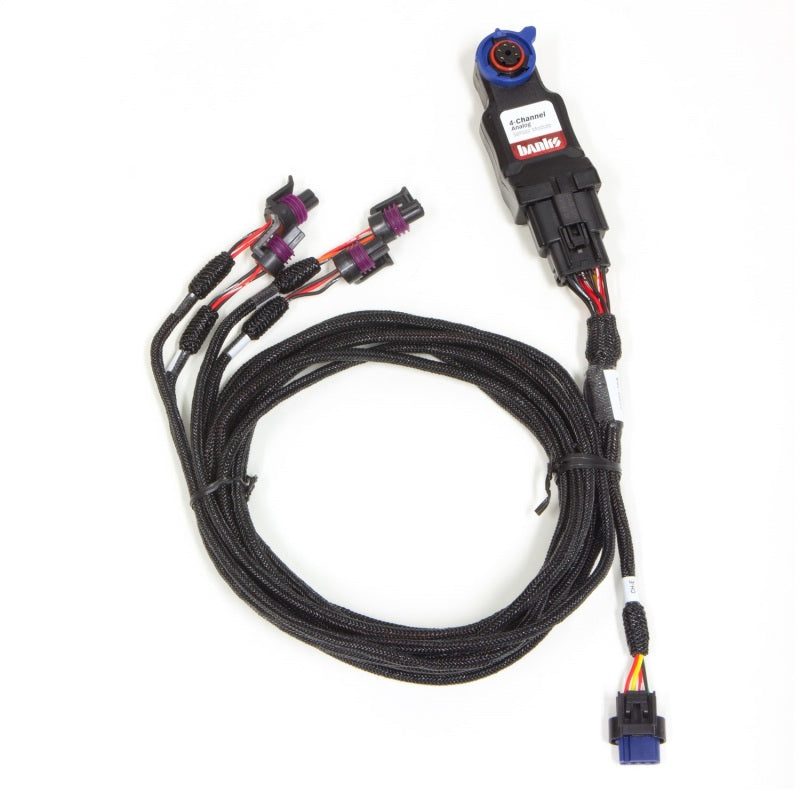

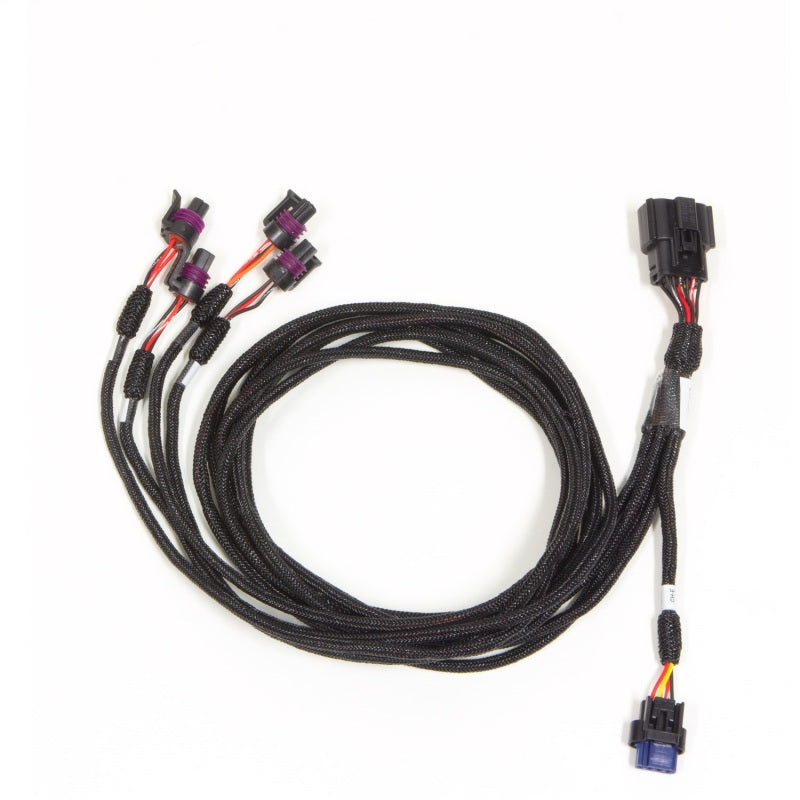

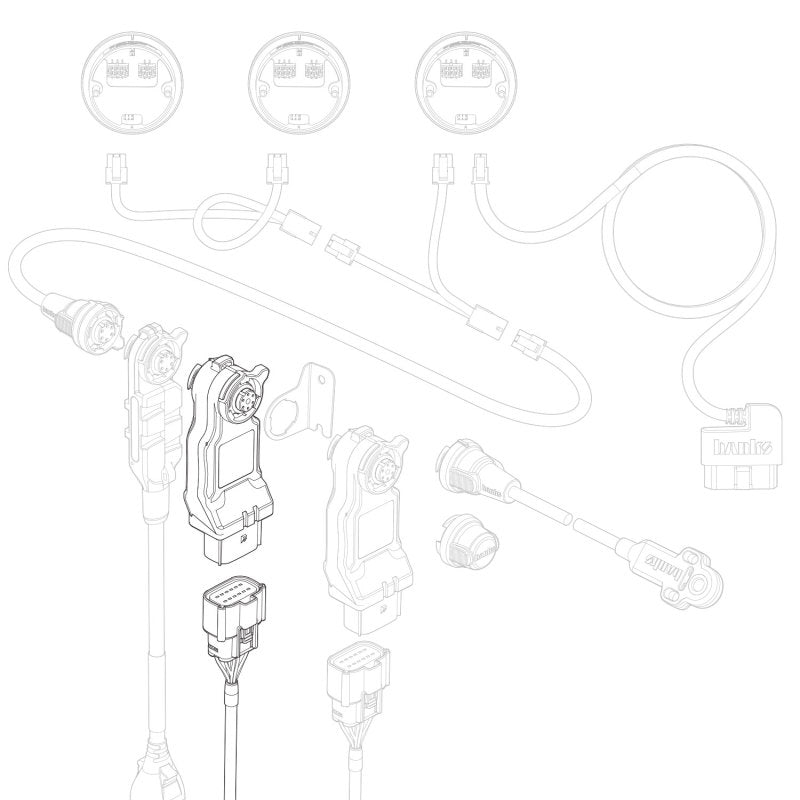

Connects to your iDash to add 4 Analog Sensor inputs plus 1 Frequency signal input per module. Works with a wide variety of Banks plug-and-play sensors as well as custom analog or resistance sensors. Each channel can be configured to any parameter. Harness length is 5 feet per analog sensor branch and frequency channel is 8 inch. The 5-Ch Analog with frequency Module Connects to your iDash and adds 4 Analog Sensor inputs plus 1 Frequency signal input per module. The system works with a wide variety of Banks plug-and-play sensors as well as with your custom analog or resistance sensor. Each channel can be configured to any parameter making this a very flexible module. Harness length is 5 feet per analog sensor branch and 18 inches for frequency channel to accommodate almost any sensor location. Daisy chain up to 6 Thermocouple Modules and 6 Analog Sensor Modules per system allowing you to add over 48 new sensors to your Banks iDash DataMonster or SuperGauge.

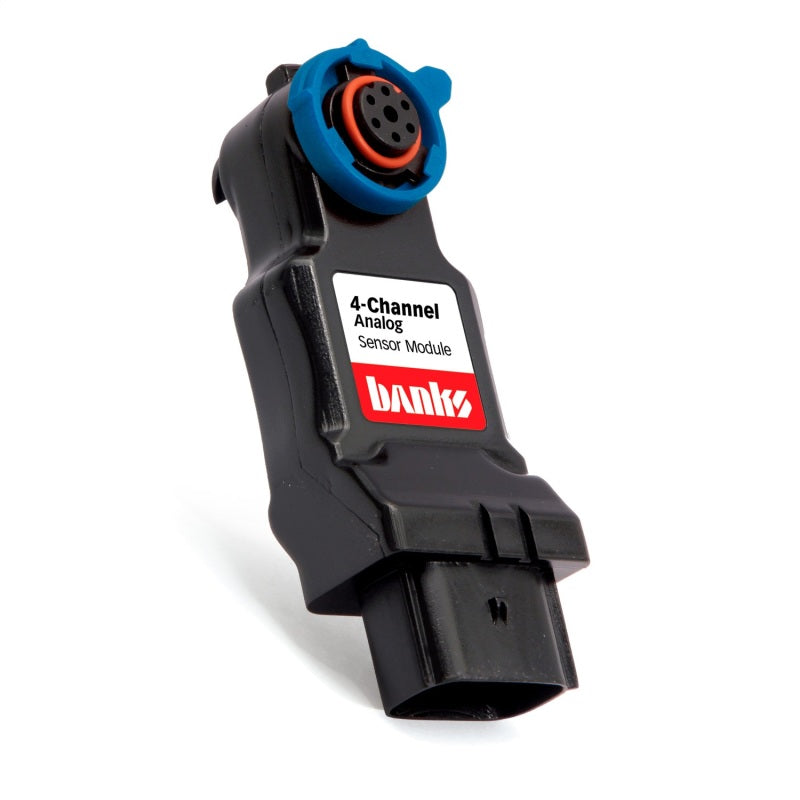

Key Features: The 5-Ch Analog Module. Connects to your iDash. Adds 4 Analog and 1 Frequency Sensor input per module. The system works with a wide variety of Banks plug-and-play sensors. Also works with your custom analog or resistance sensor. Each channel can be configured to any parameter making this a very flexible module. Combine with other Banks Sensor Modules to use additional sensors. Daisy chain up to 6 Thermocouple and 6 Analog Sensor Modules per system. Connects inline with Banks Derringer, and other Sensor Modules for easy connectivity.
5 Ch Analog with Frequency Module System BanksBus compatible reciever for 3-Pin Delphi sensors and "Ch-E"
Note: 66556 B-Bus Starter kit required except for customers with a Derringer or other B-Bus Module already installed.
Does not include mounting bracket sold here.

• Connects inline w/Banks Derringer and other Sensor Modules


• Add 4 Sensor inputs plus 1 frequency signal

Air Freight Prohibited: false
Not Carb Approved: false
Carb Acknowledgement Required: true
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: false
