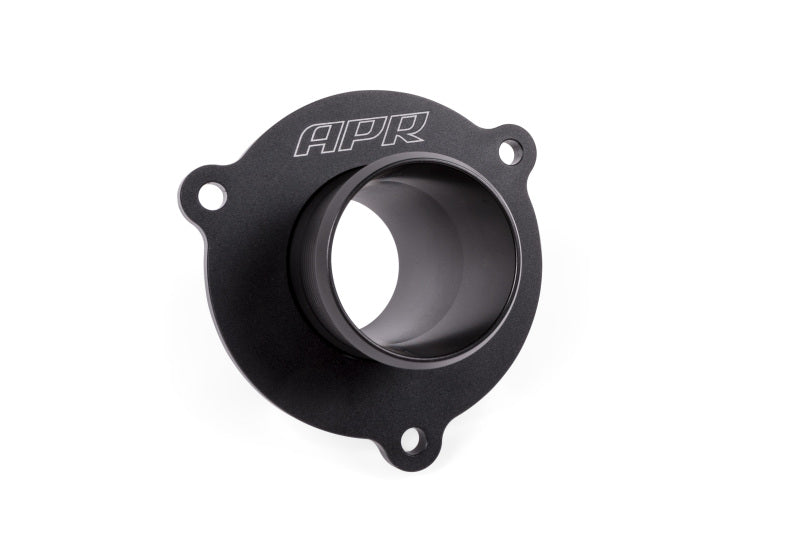

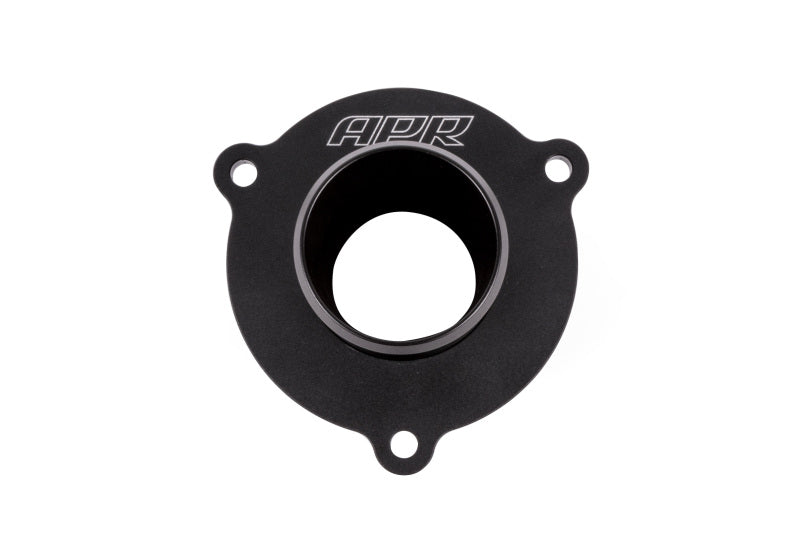

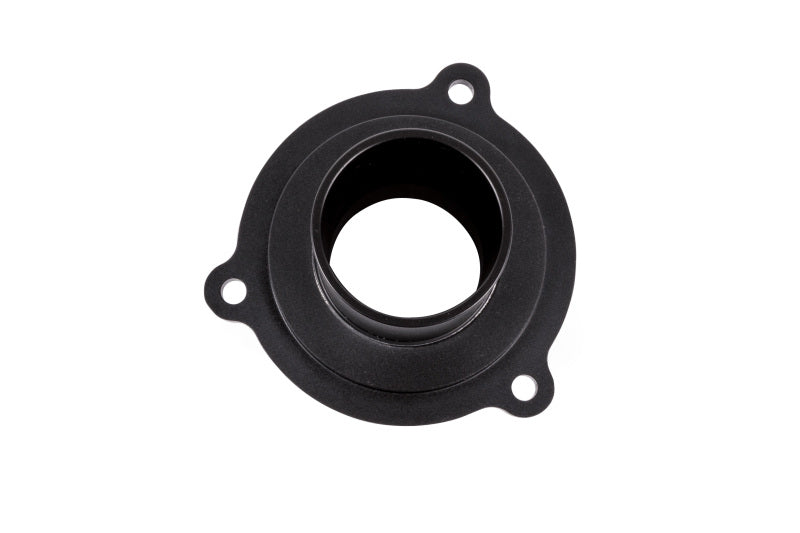

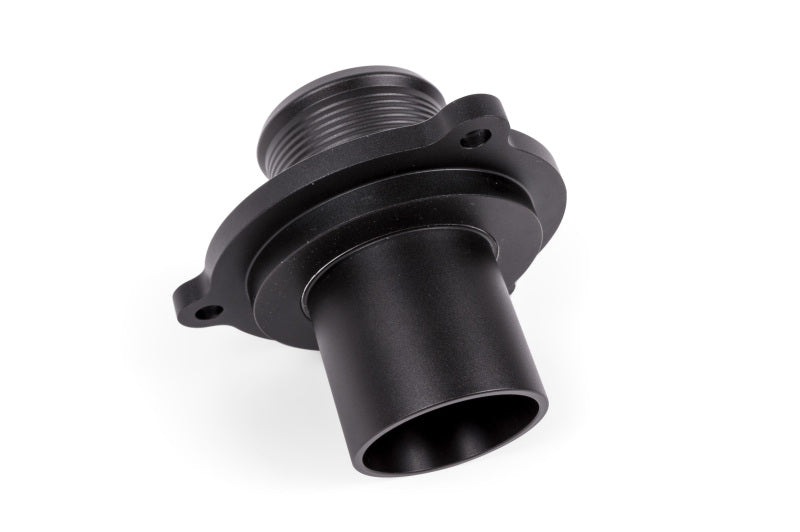

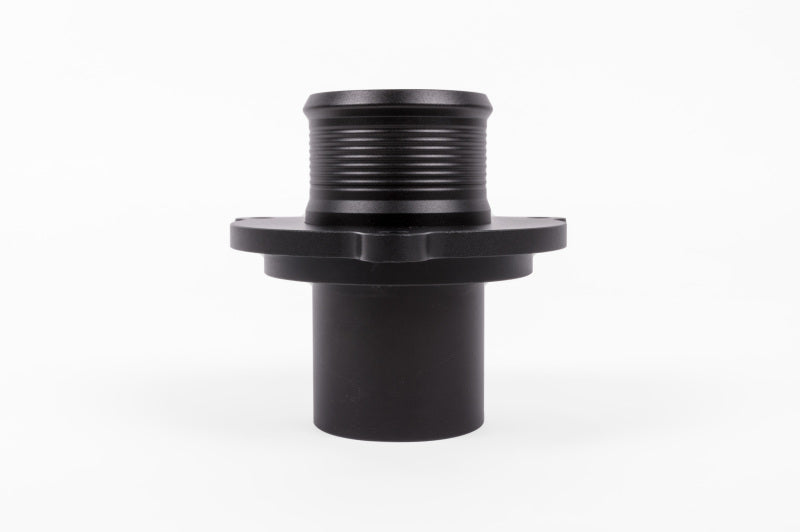

APR 17-21 Porsche Macan MQB Turbo Muffler Delete - Black

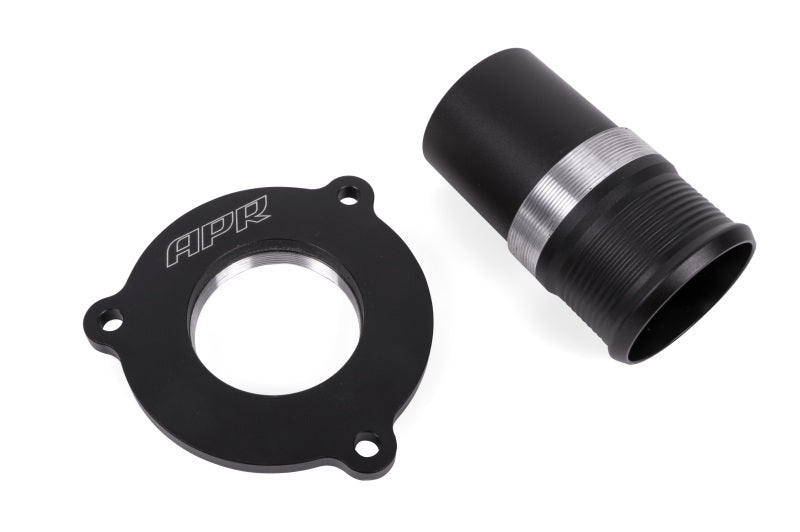

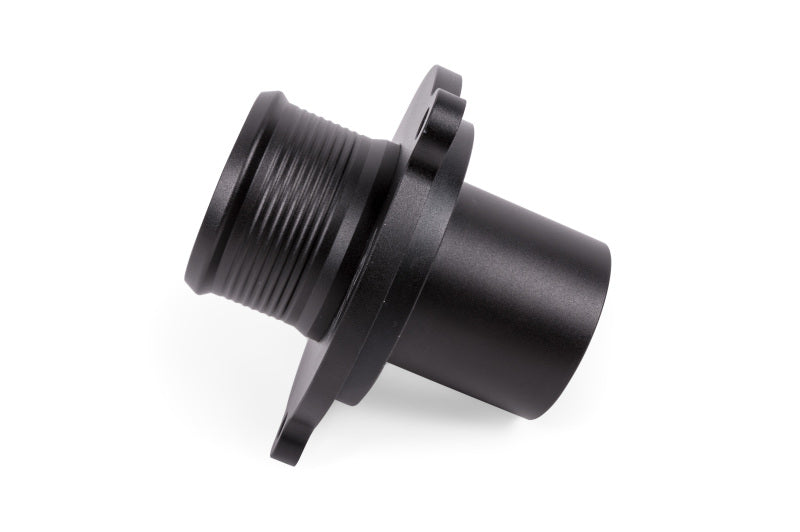

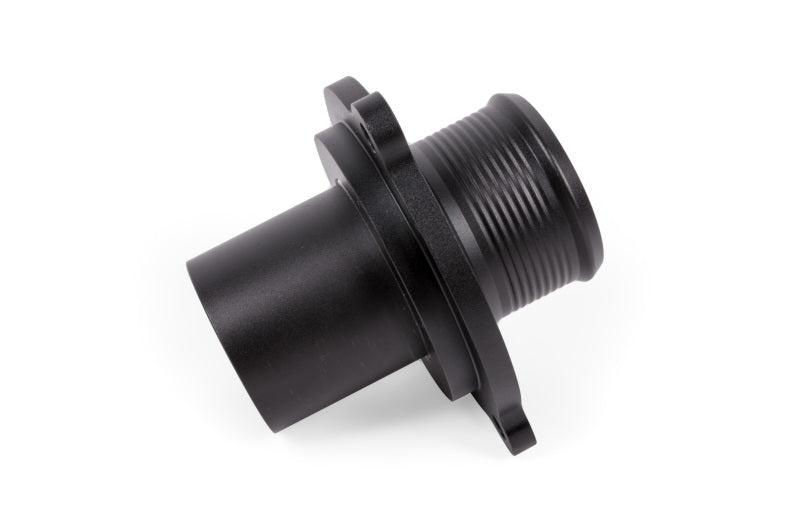

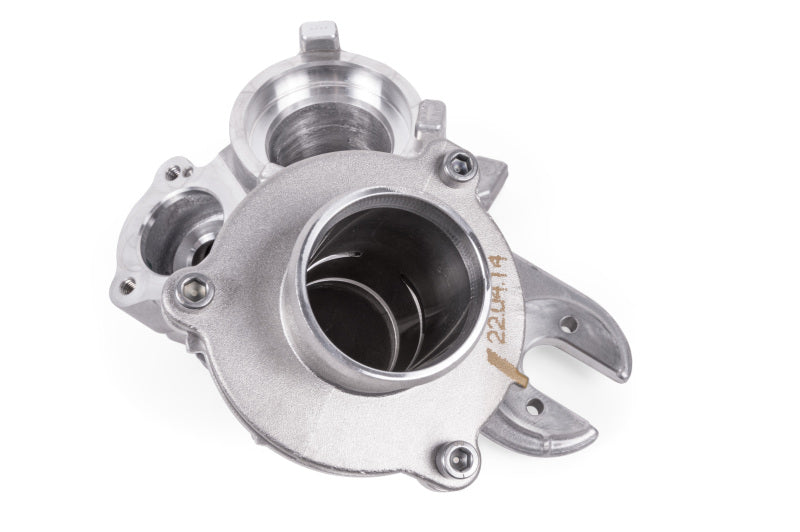

APR's 2-Piece Design Explained: As is true with all machined parts, it's impossible to make all parts the same. In the case of the turbo muffler housing, the distance between the bottom and top of the muffler's housing will vary from turbo to turbo. The acceptable measurement range is known as a tolerance. The nominal distance between the top and bottom of the turbo muffler's mounting points is roughly 51 mm. The tolerance on this part can be as loose as +/- .5mm or more. This means some muffler housings will be up to 51.5mm tall, or as low as 49.5mm tall. Since the distance between the top and bottom of the muffler chamber will be different on every turbo, a 1-piece turbo muffler delete will always be either too tall or too short. On systems that are too tall, the delete will touch the bottom but will not touch the top mounting point, creating an imperfect seal and potential for a boost leak. If the part is too short, the system will seal at the top, but will leave a small gap at the bottom, thus negating the purpose of the part as illustrated in the diagram below. APR's 2-piece design solves this issue with an adjustable height design. While a 2-piece design is more difficult and expensive to manufacture, it's the only way to ensure an accurate fit and perfect seal. APR provides a Viton seal that's placed at the bottom of the muffler housing. The muffler cover is then installed forming a seal with the factory gasket. Then, the center tube is inserted and screwed into place to the desired depth, compressing against the Viton seal to ensure a leak proof seal in every scenario. Finally Tension from the seal prevents the tube from coming loose, and the included Loctite provides extra security from movement. With the turbo muffler deleted, the APR design provides a smooth, turbulence free, and leak proof path for airflow existing the turbo! Fits 2015-2020 Audi A3 - 2009-2022 Audi A4/A5/A6/A7 - 2013-2016 Audi Allroad - 2019-2024 Audi Q3 - 2011-2022 Audi Q5 - 2017-2022 Audi Q7 - 2015-2020 Audi S3 - 2016-2023 Audi TT/TTS - 2019-2021 VW Please note, replaces factory part 06H 131 111

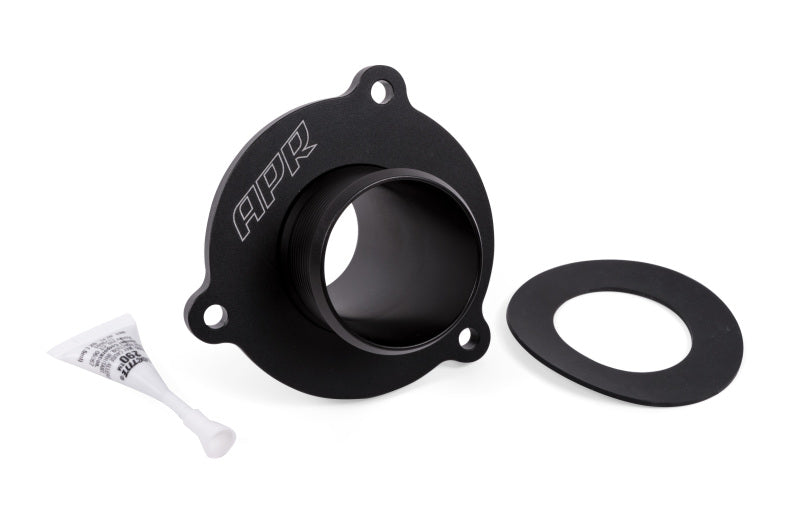

• 2 piece design with gasket eliminates leaks / factory tolerance issues
• Removes the factory turbo muffler
• CNC machined billet aluminum
• Better power delivery
• Enhanced turbo sound
• Anodized black
• Faster spool

Fitment:
2009 Audi A4
2009 Audi A4 Quattro
2010 Audi A4
2010 Audi A4 Quattro
2010 Audi A5
2010 Audi A5 Quattro
2011 Audi A4
2011 Audi A4 Quattro
2011 Audi A5
2011 Audi A5 Quattro
2011 Audi Q5
2012 Audi A4
2012 Audi A4 Quattro
2012 Audi A5
2012 Audi A5 Quattro
2012 Audi A6
2012 Audi Q5
2013 Audi A4
2013 Audi A4 Quattro
2013 Audi A5
2013 Audi A5 Quattro
2013 Audi A6
2013 Audi A6 Quattro
2013 Audi allroad
2013 Audi Q5
2014 Audi A4
2014 Audi A4 Quattro
2014 Audi A5
2014 Audi A5 Quattro
2014 Audi A6
2014 Audi A6 Quattro
2014 Audi allroad
2014 Audi Q5
2015 Audi A3
2015 Audi A3 Quattro
2015 Audi A4
2015 Audi A4 Quattro
2015 Audi A5 Quattro
2015 Audi A6
2015 Audi A6 Quattro
2015 Audi allroad
2015 Audi Q5
2015 Audi S3
2015 Volkswagen Golf
2015 Volkswagen Golf R
2015 Volkswagen Golf SportWagen
2015 Volkswagen GTI
2016 Audi A3
2016 Audi A3 Quattro
2016 Audi A4
2016 Audi A4 Quattro
2016 Audi A5 Quattro
2016 Audi A6
2016 Audi A6 Quattro
2016 Audi allroad
2016 Audi Q5
2016 Audi S3
2016 Audi TT Quattro
2016 Audi TTS Quattro
2016 Volkswagen Golf
2016 Volkswagen Golf R
2016 Volkswagen Golf SportWagen
2016 Volkswagen GTI
2017 Audi A3 Quattro
2017 Audi A4
2017 Audi A4 Quattro
2017 Audi A5 Quattro
2017 Audi A6
2017 Audi A6 Quattro
2017 Audi Q5
2017 Audi Q7
2017 Audi S3
2017 Audi TT Quattro
2017 Audi TTS Quattro
2017 Porsche Macan
2017 Volkswagen Golf
2017 Volkswagen Golf Alltrack
2017 Volkswagen Golf R
2017 Volkswagen Golf SportWagen
2017 Volkswagen GTI
2018 Audi A3 Quattro
2018 Audi A4
2018 Audi A4 Quattro
2018 Audi A5 Quattro
2018 Audi A6
2018 Audi A6 Quattro
2018 Audi Q5
2018 Audi Q7
2018 Audi S3
2018 Audi TT Quattro
2018 Audi TTS Quattro
2018 Porsche Macan
2018 Volkswagen Atlas
2018 Volkswagen Golf
2018 Volkswagen Golf Alltrack
2018 Volkswagen Golf R
2018 Volkswagen Golf SportWagen
2018 Volkswagen GTI
2019 Audi A3 Quattro
2019 Audi A4
2019 Audi A4 allroad
2019 Audi A4 Quattro
2019 Audi A5 Quattro
2019 Audi A5 Sportback
2019 Audi A6 Quattro
2019 Audi Q3
2019 Audi Q5
2019 Audi Q7
2019 Audi S3
2019 Audi TT Quattro
2019 Audi TTS Quattro
2019 Porsche Macan
2019 Volkswagen Arteon
2019 Volkswagen Atlas
2019 Volkswagen Golf Alltrack
2019 Volkswagen Golf R
2019 Volkswagen Golf SportWagen
2019 Volkswagen GTI
2019 Volkswagen Jetta
2020 Audi A3 Quattro
2020 Audi A4 allroad
2020 Audi A4 Quattro
2020 Audi A5 Quattro
2020 Audi A5 Sportback
2020 Audi A6 Quattro
2020 Audi Q3
2020 Audi Q5
2020 Audi Q5 PHEV
2020 Audi Q7
2020 Audi S3
2020 Audi TT Quattro
2020 Audi TTS Quattro
2020 Porsche Macan
2020 Volkswagen Arteon
2020 Volkswagen Atlas
2020 Volkswagen Atlas Cross Sport
2020 Volkswagen GTI
2020 Volkswagen Jetta
2021 Audi A4 allroad
2021 Audi A4 Quattro
2021 Audi A5 Quattro
2021 Audi A5 Sportback
2021 Audi A6 Quattro
2021 Audi A7 Sportback
2021 Audi Q3
2021 Audi Q5
2021 Audi Q5 PHEV
2021 Audi Q5 Sportback
2021 Audi Q7
2021 Audi TT Quattro
2021 Audi TTS Quattro
2021 Porsche Macan
2021 Volkswagen Arteon
2021 Volkswagen Atlas
2021 Volkswagen Atlas Cross Sport
2021 Volkswagen GTI
2021 Volkswagen Jetta
2022 Audi A4 allroad
2022 Audi A4 Quattro
2022 Audi A5 Quattro
2022 Audi A5 Sportback
2022 Audi A6 Quattro
2022 Audi A7 Sportback
2022 Audi Q3
2022 Audi Q5 PHEV
2022 Audi Q5 Sportback
2022 Audi Q7
2022 Audi TT Quattro
2022 Audi TTS Quattro
2022 Volkswagen Atlas
2022 Volkswagen Atlas Cross Sport
2022 Volkswagen Jetta
2023 Audi Q3
2023 Audi TT Quattro
2023 Audi TTS Quattro
2023 Volkswagen Atlas
2023 Volkswagen Atlas Cross Sport
2023 Volkswagen Jetta
2024 Audi Q3
2025 Audi Q3
2026 Audi Q3


Air Freight Prohibited: false
Not Carb Approved: true
Carb Acknowledgement Required: false
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Units Per Sku: 1
Regular Stock: t
